Product Description

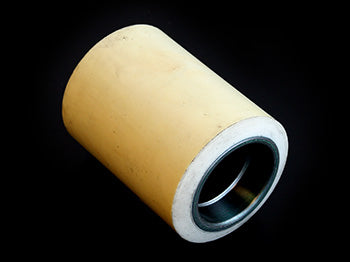

The GW 163-XL is a high-performance load wheel designed specifically for electric lift trucks. Constructed from durable 97A durometer polyurethane, this wheel is engineered to provide excellent traction and longevity, making it ideal for standard electric pallet truck applications.
Specifications: 3.250 inch diameter x 4.500 inch width (3.250" x 4.500" | 3.25 x 4.5 wheel | 3-1/4 x 4-1/2 | 82.55mm x 114.30mm)
• Made from 97A durometer polyurethane for enhanced durability
• Optimized for smooth operation on electric pallet trucks
• Designed to fit standard electric pallet truck wheel axles
This load wheel is perfect for improving the efficiency and performance of your electric lift truck operations.
Specifications
Material & Construction
| Wheel Material | Polyurethane, hardness rated 97A |
Part Numbers & Compatibility
| OEM Part Number | GW 163-XL |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 4.5 |
Frequently Asked Questions
Q: What makes the GW 163-XL different from standard electric pallet jack wheels?
A: The GW 163-XL is constructed from 97A durometer polyurethane, which provides exceptional hardness and wear resistance compared to standard wheels. The dimensions are 3.250 inch diameter x 4.500 inch width (82.55mm x 114.30mm). This extra-large width and high-durometer material make it ideal for heavy-duty electric pallet truck operations requiring extended wheel life.
Q: What electric pallet truck models are compatible with the GW 163-XL?
A: The GW 163-XL is designed for standard electric pallet truck wheel axles. Verify that your truck axle accommodates the 4.500 inch width and the wheel mounting interface before ordering. Contact your truck manufacturer or supplier to confirm compatibility by model number and serial range.
Q: How do I diagnose wheel wear on a GW 163-XL?
A: Even with 97A durometer material, inspect quarterly for flat spots, edge chipping, or surface glazing. If the truck pulls to one side or steering feels stiff, the wheels may be uneven in wear. Reduced acceleration or increased motor strain can signal wheel degradation. Replace when tread hardness diminishes noticeably or visible damage appears.
Q: What is the installation process for the GW 163-XL wheel?
A: Disconnect the battery and secure the truck. Remove the axle fastener. Slide the old wheel off and slide the new GW 163-XL onto the axle, verifying full seating. Re-tighten the fastener and ensure the wheel spins freely without drag or wobble. Reconnect the battery and test steering before resuming operations.
Q: What is the expected lifespan of a GW 163-XL wheel?
A: The 97A durometer polyurethane construction extends service life to 3 to 5 years under normal warehouse use, longer than standard wheels. Life depends on load cycles, surface conditions, and operating temperature. Keep tread clean, avoid overloading, and store indoors when not in use to maximize durability.
