Product Description

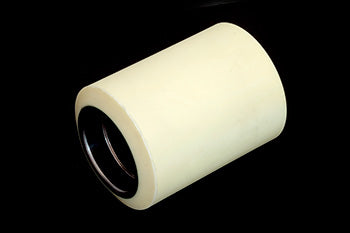

The GW 2365-XL Load Wheel is specifically designed for electric pallet jacks and lift trucks, providing durability and efficiency for material handling tasks. This high-performance wheel is ideal for various OEM applications, ensuring smooth operation and enhanced productivity.
Specifications: 3.250 inch diameter x 4.500 inch width (3.250" x 4.500" | 3.25 x 4.5 wheel | 3-1/4 x 4-1/2 | 82.55mm x 114.30mm)
• Constructed from high-quality 97A polyurethane for superior wear resistance
• Engineered for optimal performance in heavy-duty applications
• Compatible with multiple OEM models, including Crown WP2300 electric pallet jacks
This load wheel is a reliable choice for enhancing the performance of your electric pallet jacks and lift trucks.
Specifications
Compatibility
| Compatible Models | Crown WP2300; electric pallet jack models supporting GW 2365-XL series wheels |
Part Numbers
| Manufacturer Part Number | GW 2365-XL |
| OEM Part Number | GW2365XL |
| Superseded Part Number | GW 2365-XL-A |
| Equivalent Part Numbers | GWK-WP2300-LW-XL |
| Cross-Reference Part Numbers | GW2365-R, GWK-WP2300-LW-XL, GW 2365-XL-A |
Performance
| Service Factor | 1.0 for wheel applications at rated load |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 4.5 |
Frequently Asked Questions
Q: What is the main advantage of GW 2365-XL over standard GW 2365 wheels?
A: The GW 2365-XL features 97A durometer polyurethane, which is harder and more durable than the standard GW 2365 95A durometer. The harder compound resists wear, cuts, and debris better, extending wheel life by 20 to 30 percent in high-cycle or rough-surface applications. GW 2365-XL is ideal for busy distribution centers, outdoor yards, or heavy-use environments. Standard GW 2365 is sufficient for light to moderate warehouse use and costs less.
Q: Is GW 2365-XL a direct replacement for standard GW 2365 wheels?
A: Yes, GW 2365-XL is a direct plug-and-play replacement for standard GW 2365 wheels. Both have the same 3.250 inch diameter, 4.500 inch width, and 25mm bearing bore. The installation procedure is identical: remove the cotter pin, slide off the old wheel, install the GW 2365-XL, and replace the cotter pin. No modifications or additional tools are needed. Cross-references include GWK-WP2300-LW-XL and GW 2365-XL-A, which are equivalent part numbers.
Q: What electric pallet jack models is GW 2365-XL compatible with?
A: GW 2365-XL is designed for Crown WP2300 electric pallet jacks and similar models that use 3.250 x 4.500 inch wheels with 25mm bearing bore. It is also compatible with other OEM electric jacks specifying the standard GW 2365 wheel, since they have the same outer dimensions and bore size. Always verify your jack model number and parts diagram list GW 2365, GW 2365-XL, or GWK-WP2300-LW-XL as approved wheels before purchasing.
Q: How much longer will GW 2365-XL wheels last compared to standard wheels?
A: In heavy-use environments (12 to 16 hours per day, constant load cycling), standard GW 2365 wheels last 6 to 12 months, while GW 2365-XL wheels last 9 to 18 months, extending service life by 50 percent or more. In moderate use (8 hours per day), standard wheels last 12 to 24 months and GW 2365-XL lasts 18 to 30 months. The harder 97A durometer resists flat spots, chunks, and grinding wear. Your actual lifespan depends on floor type, load weight, and operational hours.
Q: Does the 97A durometer on GW 2365-XL affect handling or noise?
A: The harder 97A durometer on GW 2365-XL wheels increases rolling resistance and may produce slightly more noise on smooth concrete compared to the softer 95A standard wheels. Traction on very smooth or oily floors may be reduced slightly. However, on typical warehouse or outdoor floors, the handling difference is minimal. If your jack operates primarily on smooth, clean concrete indoors, standard GW 2365 will feel slightly smoother. For most applications, GW 2365-XL is barely noticeable in daily use.
Q: What is the correct procedure to install GW 2365-XL wheels?
A: Safely lift the electric pallet jack on stands or blocks to prevent it from rolling. Remove the cotter pin or snap ring from the wheel axle. Grasp the old wheel and slide it straight off the axle. Align the GW 2365-XL wheel bore with the axle and slide it on firmly until fully seated. Install a new cotter pin through the axle hole or reinstall the snap ring to secure the wheel. Spin the wheel by hand to ensure smooth rotation with no rubbing or binding. Lower the jack and test on a flat floor before returning to service. If the wheel does not spin freely, remove it and inspect for bearing debris or misalignment.
