Product Description

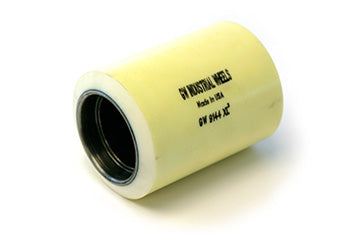

The GW 9144-XL Load Wheel is a high-quality aftermarket replacement designed specifically for electric lift truck applications. This polyurethane load wheel offers durability and performance for efficient material handling.
Specifications: 3.250 inch diameter x 4.500 inch width (3.250" x 4.500" | 3.25 x 4.5 wheel | 3-1/4 x 4-1/2 | 82.55mm x 114.30mm)
• Made from durable polyurethane for long-lasting use
• Designed for optimal performance in electric lift truck applications
• Provides smooth operation and enhanced load support
This load wheel is compatible with various electric lift truck models, ensuring reliable performance in demanding environments.
Specifications
Material & Construction
| Tire Compound | Polyurethane, XL 97A |
Part Numbers
| OEM Part Number | GW 9144-XL |
| Manufacturer Part Number | GW 9144-XL (AFTERMARKET) |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 4.5 |
Frequently Asked Questions
Q: Is the GW 9144-XL wheel a wheel-only or does it include bearings?
A: The GW 9144-XL is a wheel-only replacement without bearings. You must reuse your existing spindle bearings or install new 30mm bore bearings separately. If you do not have bearings or do not want to handle bearing installation, order the GW 9144-XL-A assembly instead, which includes pre-installed bearings ready to mount.
Q: What is the difference between GW 9144-XL and GW 9144-A polyurethane compounds?
A: The GW 9144-XL uses an XL 97A polyurethane compound, while the GW 9144-A uses standard 95 Shore A polyurethane. The XL 97A formulation is an aftermarket compound engineered for slightly higher durometer and extended tread life on high-speed or heavy-duty applications. Both wheels fit the same 30mm bore spindle and 3.25 inch x 4.5 inch pocket. Choose XL 97A if your truck operates at speeds above 5 mph or in high-impact environments.
Q: Can I swap the GW 9144-XL wheel onto a truck that originally came with GW 9144 wheels?
A: Yes. If your truck has GW 9144 wheels and the spindle bore is 30mm, the GW 9144-XL will bolt on without modification. You can replace all four wheels at once or mix and match with existing bearings. Do not mix bearing IDs on the same truck. If your truck is 10 or more years old, replace bearings along with new wheels to prevent spin-down under load.
Q: How often should I rotate or replace GW 9144-XL wheels?
A: The GW 9144-XL wheel typically lasts 1.5 to 2 years in continuous warehouse operation, depending on floor type and load weight. Do not rotate wheels, as they wear asymmetrically based on truck steering patterns. Inspect wheels quarterly for flat-spotting, cracks, or hardening. Once tread hardness becomes glossy or the wheel shows visible wear flats, replacement is overdue. A set of four replacement wheels costs less than emergency downtime.
Q: What bearing size do I need if I am installing GW 9144-XL wheels on my truck?
A: The GW 9144-XL wheel requires 30mm inner diameter (1.181 inch bore) bearings. Common bearing part numbers that fit are standard 30mm flanged or deep-groove ball bearings. Order bearings rated for at least 100 kg load capacity. If you do not have bearing experience, contact your lift truck supplier to install bearings during wheel replacement. Improper bearing installation will cause the wheel to lock up or spin freely.
