Product Description

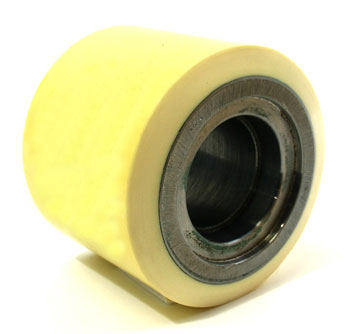

The GW 9153-XL is a high-performance polyurethane load wheel specifically designed for electric pallet jack applications. This durable wheel is engineered to provide exceptional load capacity and reliability in demanding environments.
Specifications: 5.000 inch diameter x 4.120 inch width (5.000" x 4.120" | 5 x 4.12 wheel | 5 x 4.12 | 127.00mm x 104.65mm)
• Constructed from 97A durometer XL high load capacity polyurethane compound
• Designed for aftermarket replacement service
• Ideal for Class 2 electric walkie pallet trucks
This load wheel is perfect for enhancing the efficiency and performance of your electric pallet jacks.
Specifications
Material & Construction
| Wheel Material | Polyurethane compound |
| Durometer Hardness | 97A Shore hardness rating |
| Construction Type | XL high load capacity polyurethane formulation |
Part Numbers & Compatibility
| Manufacturer Part Number | GW 9153-XL |
| Equipment Type | Class 2 electric pallet jack and walkie pallet truck applications |
Wheel Dimensions
| Outside Diameter | 5 |
| Width Side to Side | 4.12 |
Frequently Asked Questions
Q: What does XL in GW 9153-XL indicate?
A: XL indicates extra-load or extended-life formulation. The GW 9153-XL uses 97A durometer XL polyurethane compound engineered for high load capacity and prolonged service life. This harder tread resists wear better than standard 95A compounds in demanding Class 2 and Class 3 pallet jack applications.
Q: Is GW 9153-XL a drop-in replacement for GW 9153?
A: Mostly yes. Both are 5.000 inch diameter. GW 9153-XL is 4.120 inch wide, while GW 9153 is 4.125 inch. The 0.005 inch difference is negligible on most truck frames. However, verify your bearing bore diameter. GW 9153-XL does not include pre-mounted bearings. If your original wheel has a 25mm bore, confirm the new wheel accommodates that bearing size.
Q: Which lasts longer: GW 9153-XL or GW 9153-A?
A: GW 9153-XL (97A XL) typically outlasts GW 9153-A (95A Durarun) by 30 to 40 percent under identical service. The harder, load-optimized compound resists flattening and cracking longer. Choose GW 9153-XL if your truck runs high-frequency or extreme load cycles; use GW 9153-A for lighter-duty or lower-cost replacement needs.
Q: What bearing specifications do I need for GW 9153-XL?
A: GW 9153-XL does not include bearing specifications in its standard designation. Measure your axle bore or consult your truck manual. Most Class 2 pallet jacks use 25mm or 20mm bore bearings. Contact your parts supplier with your truck model to confirm the correct bearing size before installation.
Q: Can GW 9153-XL be used on wet or oily floors?
A: The 97A XL compound provides good grip but is not chemically resistant. Water and oils reduce traction and may soften the polyurethane over time. For wet or oily environments, verify your truck manual for wheel material recommendations or request an oil-resistant or phenolic alternative wheel.
Q: What is the recommended installation torque for GW 9153-XL bearing assembly?
A: Bearing preload and axle nut torque depend on the axle size and truck design. Do not over-tighten; this seizes bearings and causes premature failure. Refer to your equipment manual or consult the wheel supplier. If no specification is available, use firm hand-tight pressure, then add one-quarter turn. Spin the wheel freely; it should not drag or wobble.
