Product Description

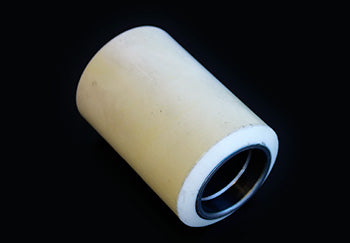

The Raymond RA 632-016-XL is a premium polyurethane load wheel designed for Raymond 101 Series electric pallet trucks. Featuring a 3.25-inch diameter with 5.00-inch tread width and 25 mm bore, this wheel delivers reliable performance in demanding warehouse environments. The premium-grade polyurethane tread is bonded to a cast iron hub and equipped with sealed 6205-2RS flush-mounted bearings for smooth operation and extended service life. The 97A Shore A hardness rating balances load capacity with traction on concrete and sealed flooring.
Specifications
Dimensions
| Diameter | 3.25 inch |
| Tread Width | 5.00 inch |
| Bore | 25 mm |
Material
| Tread Material | Polyurethane, premium grade |
| Tread Hardness | Shore A97 Extra Load (XL) |
| Hub Material | Cast iron |
Bearings
| Bearing Type | Sealed 6205-2RS |
| Bearing Mounting | Flush-mounted |
Part Numbers
| Manufacturer Part Number | RA 632-016-XL |
| Raymond Reference Part Number | 632-016 |
| Cross-Reference Part Numbers | Replaces 632-016-001, equivalent to 632-016/008, supersedes 632-016-00 |
| Compatible Equipment | Raymond 101 Series electric pallet trucks |
Frequently Asked Questions
Q: What are the physical dimensions and bore size for the RA 632-016-XL load wheel?
A: The RA 632-016-XL features a 3.25 inch outer diameter, 5.00 inch tread width, and 25 mm bore. This larger tread width provides increased load distribution compared to narrower alternatives.
Q: Which Raymond electric pallet truck models does the RA 632-016-XL fit?
A: The RA 632-016-XL is designed for Raymond 101 Series electric pallet trucks. Verify your truck model before ordering to ensure fitment.
Q: What cross-reference part numbers are equivalent to the RA 632-016-XL?
A: The RA 632-016-XL replaces part number 632-016-001, is equivalent to 632-016/008, and supersedes 632-016-00. Use these references when searching for this load wheel across Raymond documentation or legacy part systems.
Q: What bearing type is used in the RA 632-016-XL?
A: The RA 632-016-XL is equipped with sealed 6205-2RS bearings that are flush-mounted into the cast iron hub. The sealed design protects against contamination in warehouse and loading dock environments.
Q: What material composition does the RA 632-016-XL load wheel have?
A: The RA 632-016-XL features premium-grade polyurethane tread bonded to a cast iron hub. This combination provides durability under sustained load while maintaining smooth rolling characteristics on concrete and sealed flooring.
Q: How does the hardness rating affect load wheel performance?
A: Load wheel hardness, measured in Shore A units, determines traction and wear resistance. The 97A Shore A hardness on the RA 632-016-XL balances durability and traction for general warehouse applications.
