Product Description

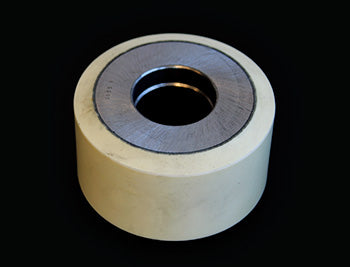

The RA 632-050-XL polyurethane load wheel assembly is a heavy-duty replacement wheel engineered for Raymond 020, 031, and 7000 series reach trucks. This direct replacement features a 5.000-inch outer diameter, 3.625-inch width, and integrated 6305 series sealed bearing. Cast from a 97A durometer XL polyurethane compound, it delivers 15% increased load capacity compared to standard formulations, making it ideal for demanding industrial warehousing and material handling operations. The precision-machined steel hub and sealed bearing design ensure reliable performance under continuous high-load service. A durable upgrade that improves productivity on your reach truck fleet.
Specifications
Part Numbers
| Manufacturer Part Number | RA 632-050-XL |
| Cross Reference Part Numbers | 632-050-107, 632-050-107-A, 632-050-004 |
Material & Construction
| Tread Material | Cast polyurethane, Poly XL 97A compound |
| Durometer Rating | 97 Shore A (XL heavy-duty formulation) |
| Hub Material | Machined steel hub |
| Hub Construction | Integrated steel hub with precision machined bore |
Physical Dimensions
| Outer Diameter | 5.000 inches |
| Width | 3.625 inches |
| Bore | 2.441 inches |
Bearing & Performance
| Bearing Specification | 6305 series sealed ball bearing |
| Load Capacity Increase | 15% increased load capacity over standard formulations |
Compatibility
| Compatible Equipment Models | Raymond 020 Series Reach Trucks, 031 Series Reach Trucks, 7000 Series Reach-Fork Trucks |
Frequently Asked Questions
Q: What is the load capacity advantage of the RA 632-050-XL over standard wheels?
A: The RA 632-050-XL features a heavy-duty 97A durometer XL compound formulation that delivers 15 percent increased load capacity compared to standard 95A polyurethane formulations. This extra capacity makes it suitable for demanding industrial pallet handling on Raymond 020, 031, and 7000 series reach trucks.
Q: What are the physical dimensions of the RA 632-050-XL?
A: The RA 632-050-XL has a 5.000 inch outer diameter, 3.625 inch width, and 2.441 inch bore. These dimensions make it compatible with specific Raymond reach truck platforms requiring larger tread width and load capacity.
Q: What is the tread compound and bearing configuration of the RA 632-050-XL?
A: The wheel is constructed from a cast polyurethane compound with a 97 Shore A durometer rating for heavy-duty performance. It includes an integrated 6305 series sealed bearing that provides reliable support under continuous high-load industrial use.
Q: Which Raymond equipment models does the RA 632-050-XL fit?
A: The RA 632-050-XL is designed for Raymond 020, 031, and 7000 series reach trucks. It cross-references and supersedes parts 632-050-107, 632-050-107-A, and 632-050-004, making it a direct upgrade option for those applications.
Q: Is the RA 632-050-XL interchangeable with standard Raymond load wheels?
A: The RA 632-050-XL is interchangeable with RA 632-050-107 and RA 632-050-107-A, as indicated by its cross-reference designations. However, verify that your specific equipment model and year matches the 020, 031, or 7000 series reach truck platforms before ordering.
