Product Description

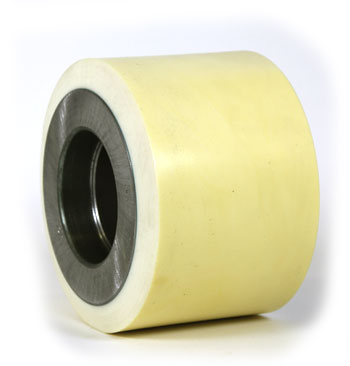

Raymond RA 632-052-003-XL is a poly XL 97A load wheel engineered for electric lift trucks. It features a 5.000 inch outside diameter, 3.625 inch width, 2.441 inch inner diameter, and is constructed with a high-capacity 97A durometer polyurethane bonded on a machined cast core. The assembly utilizes a precision 6305 bearing for fitment in Raymond 7200–7600 Series Reach-Fork, RRS, and RSS walkie trucks. Designed as a direct replacement, this wheel supersedes and interchanges with 632-052-003, 632/
Specifications
Wheel Dimensions
| Outside Diameter | 5.000 inch |
| Tread Width | 3.625 inch |
| Inner Diameter (Bore) | 2.441 inch |
Material & Construction
| Wheel Material | Polyurethane tread, cast iron core |
| Durometer Hardness | 97 Shore A |
| Compound Specification | Poly XL 97A |
| Finish | Machined core, bonded polyurethane tread |
| Bearing Type | Precision 6305 bearing |
Part Numbers & Compatibility
| Part Number | RA 632-052-003-XL |
| Manufacturer Part Number | 632-052-003 |
| Cross-Reference Part Numbers | 632-052/003, 632/052/003, 632-052-XL |
| Replaces/Supersedes | 632-052-003, 632-052/003, 632-052-007, 632-052-107 |
| Compatible Equipment | Raymond 7200, 7300, 7400, 7500, 7600 Series Reach-Fork Trucks, RRS, RSS Walkie Reach Trucks |
Frequently Asked Questions
Q: What are the dimensions and bearing specifications of the RA 632-052-003-XL?
A: This load wheel has a 5.000 inch outside diameter, 3.625 inch tread width, and 2.441 inch inner diameter (precision bore). It is equipped with a 6305 precision bearing. The machined cast core provides structural rigidity and accurate bore concentricity for proper bearing fitment.
Q: What is the hardness rating and material specification of the XL tread?
A: The RA 632-052-003-XL uses a Poly XL compound with 97A durometer hardness (Shore scale). The polyurethane is bonded to a machined cast core. This high-hardness specification provides excellent load capacity and resistance to wear in heavy-duty warehouse and industrial environments.
Q: Which Raymond truck models and series does this wheel fit?
A: The RA 632-052-003-XL is engineered for Raymond 7200-7600 Series Reach-Fork, RRS, and RSS walkie trucks. These reach and ride-on sit-down truck models require precision-bore load wheels matching the 5.000 OD and 2.441 inch bore specification. Confirm your exact truck model before ordering.
Q: What part numbers does the RA 632-052-003-XL replace?
A: This wheel supersedes and interchanges with 632-052-003, 632-052-007, 632-052-107, and equivalent cross-references 632-052/003 and 632-052/007. It functions as a direct replacement for original Raymond specifications. Always verify dimensions match your existing wheels before ordering.
Q: Why would you choose the XL 97A version over softer durometer alternatives?
A: The 97A XL compound increases load-bearing capacity, tread hardness, and wheel lifespan in high-utilization environments. It resists flat-spotting and deformation under sustained heavy loads. The trade-off is reduced shock absorption and a slightly harder ride compared to lower-durometer wheels. Choose XL specification for heavy-duty applications where durability outweighs comfort.
