Product Description

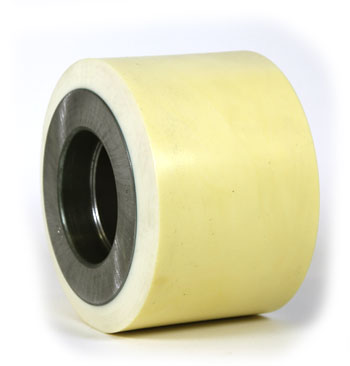

Raymond RA 632-052-B-XL Poly XL 97A load wheel engineered for electric lift truck applications. Features a precision steel core, 5.00 inch diameter, 3.625 inch width, and 2.441 inch bore with 6305 deep groove ball bearing. This direct replacement wheel is compatible with Raymond 7400 Series Reach Pallet Trucks and provides excellent load capacity and floor contact in warehouse and distribution environments.
Specifications
Dimensions
| Diameter | 5.00 inch |
| Width | 3.625 inch |
| Bore | 2.441 inch |
Material & Construction
| Wheel Hardness | 97A Shore Durometer |
| Tread Material | High Performance Polyurethane (Poly XL formulation) |
| Core Material | Precision machined steel core |
Mechanical Specifications
| Bearing Type | Single row deep groove ball bearing (6305) |
Part Numbers & Compatibility
| Manufacturer Part Number | RA 632-052-B-XL |
| Cross-Reference Part Numbers | RA 632-052-B, RA632052B, RA 632-052-007-XL |
| Compatible Equipment Models | Raymond 7400 Series Reach Pallet Trucks |
Frequently Asked Questions
Q: What are the exact dimensions and bearing specifications for the RA 632-052-B-XL load wheel?
A: The RA 632-052-B-XL is 5.00 inches in outer diameter, 3.625 inches in tread width, with a 2.441 inch bearing bore. It is fitted with a 6305 deep groove ball bearing and features a precision machined steel core.
Q: Which Raymond equipment does the RA 632-052-B-XL fit?
A: The RA 632-052-B-XL is designed for Raymond 7400 Series Reach Pallet Trucks and all load wheel applications except 6 inch by 4 inch closed toe configurations.
Q: What cross-reference part numbers are equivalent to the RA 632-052-B-XL?
A: The RA 632-052-B-XL is compatible with RA 632-052-B, RA632052B, and RA 632-052-007-XL. Verify your current part number matches one of these when ordering to confirm fitment.
Q: What hardness rating does the RA 632-052-B-XL polyurethane have, and what does that mean for durability?
A: The wheel features 97A Shore Durometer polyurethane construction. This hardness rating provides excellent load capacity and floor contact while maintaining wear resistance in standard indoor material handling applications. Poly XL formulation offers reliable performance across general warehouse and distribution center operations.
Q: How long can I expect the RA 632-052-B-XL load wheel to perform before replacement?
A: Load wheel lifespan depends on usage intensity, surface conditions, and load cycling. The precision steel core and 6305 bearing support extended operation in high-cycle environments. Monitor for visible tread wear, flat-spotting, or bearing play and replace when tread becomes smooth or runout exceeds specifications.
