Product Description

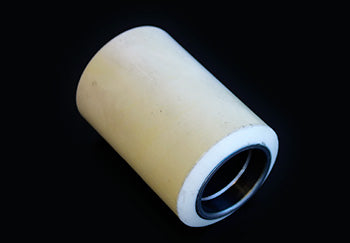

Raymond RA 632-096-XL load wheel is a 3.25 inch × 5.00 inch × 2.047 inch polyurethane XL (97A hardness) drive wheel designed for electric pallet jacks and walkie stackers. OEM part number RA 632-096-XL; no superseding or cross-reference part numbers identified. Designed for long life in high-cycle, indoor warehouse applications.
Specifications
Wheel Specifications
| Wheel Dimensions | 3.25 in (width) × 5.00 in (outer diameter) × 2.047 in (hub bore) |
| Material & Hardness | Polyurethane, 97A Shore (XL designation) |
| Wheel Type | Load wheel (drive wheel) |
Compatibility
| Compatible Equipment | Raymond electric pallet jacks and motorized floor trucks requiring 3.25 in × 5.00 in × 2.047 in load wheels |
| Equipment Type | Electric pallet jacks, walkie stackers, motorized warehouse equipment |
Application
| Primary Use | High-cycle, indoor warehouse applications including dock work, horizontal transport, and continuous load movement |
Part Identification
| Part Number | RA 632-096-XL |
Frequently Asked Questions
Q: What are the dimensions of the RA 632-096-XL load wheel?
A: The RA 632-096-XL measures 3.25 inches wide by 5.00 inches outer diameter by 2.047 inches hub bore. These compact dimensions fit Raymond electric pallet jacks and walkie stackers designed for indoor warehouse use.
Q: What does the XL designation mean on the RA 632-096-XL?
A: The XL designation indicates this load wheel uses 97A Shore A polyurethane, a premium high-durometer compound. The XL compound is harder and more wear-resistant than standard grades, delivering extended lifespan under high-cycle warehouse operations.
Q: Which Raymond equipment models are compatible with the RA 632-096-XL?
A: The RA 632-096-XL is designed for Raymond electric pallet jacks and other motorized floor trucks that specify 3.25 inch by 5.00 inch by 2.047 inch load wheels. Verify your equipment model and current wheel dimensions before ordering.
Q: How long does the RA 632-096-XL typically last in high-cycle applications?
A: The 97A polyurethane XL compound is engineered for extended service life in high-cycle, continuous indoor warehouse environments. Actual lifespan depends on load frequency, cycle rates, and floor conditions. Regular inspection for tread wear and surface damage will indicate replacement timing.
Q: Is the RA 632-096-XL marked as a direct replacement for other RA 632-096 variants?
A: The RA 632-096-XL has a unique durometer specification (97A) and dimensions optimized for specific pallet jack models. No superseding or cross-reference part numbers have been identified. Do not assume it is a direct substitute for other RA 632-096 variants without confirming dimensions and equipment compatibility.
