Raymond Load Wheel for Electric Lift Trucks
RA 631-031-004
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

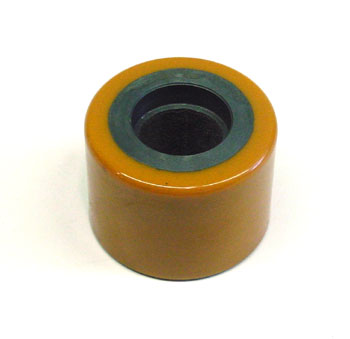

Raymond load wheel assembly. This direct replacement wheel is engineered for Raymond 7200, 7300, 7400, 7500, and 7600 Reach-Fork trucks as well as RRS and RSS Walkie Reach models. The wheel combines 95A polyurethane tread bonded to a cast iron core with precision sealed bearings for reliable performance in warehouse and distribution environments. Cross-referenced to numerous interchange part numbers for easy identification and compatibility verification.
Specifications
Material & Construction
| Tread Material | 95A polyurethane compound |
| Core Material | Cast iron |
| Bearing Type | 25 mm precision sealed bearing |
Dimensions & Specifications
| Hardness Rating | 95A Shore hardness |
Part Numbers & Compatibility
| Direct Replacement Part Number | RA 631-031-004 |
| Alternate Format | RA631-031-004 |
| Cross-Reference Part Numbers | Replaces: 631-031, 631-030, 631-131, 631-131-03, 632-030, 632-030-003, 632-031, 632-031-01, 630-050, 630-051, 031-042-310, 030-032-310, 723-009, RY-641, S641; Equivalent to: RA631-031-107, 632-031-007, 632-031-003, 632-031/001 |
| Compatible Models | Raymond 7200, 7300, 7400, 7500, 7600 Reach-Fork; RRS and RSS Walkie Reach |
Frequently Asked Questions
Q: What are the key dimensions for this Raymond load wheel?
A: This load wheel features a precision sealed bearing and 95A polyurethane tread bonded to a cast iron core for durability and reliable performance.
Q: Which Raymond electric reach truck models does this wheel fit?
A: The RA 631-031-004 is compatible with Raymond 7200, 7300, 7400, 7500, and 7600 Reach-Fork trucks as well as RRS and RSS Walkie Reach models. Always verify your specific equipment model and serial number range with documentation before ordering.
Q: What part numbers does RA 631-031-004 replace or cross-reference?
A: This wheel replaces 631-031, 631-030, 631-131, 631-131-03, 632-030, 632-030-003, 632-031, 632-031-01, 630-050, 630-051, 031-042-310, 030-032-310, 723-009, RY-641, and S641. It is equivalent to RA631-031-107, 632-031-007, 632-031-003, and 632-031/001. Confirm fitment against your current wheel assembly.
Q: Why is the 95A polyurethane compound important for warehouse operations?
A: The 95A hardness provides optimal balance for warehouse environments: harder than 85A (extended tread life, less grip) and softer than 100A+ (better grip, shorter lifespan). This rating delivers reliable floor contact on concrete and sealed surfaces while maintaining reasonable service life for typical electric reach truck duty cycles.
Q: What does the precision sealed bearing contribute to wheel performance?
A: The precision sealed bearing ensures accurate load distribution, minimizes radial play and wobbling during operation, and maintains wheel concentricity under high-speed reach truck use. Precision fit bearings reduce lateral stress on both the polyurethane tread and the cast iron core, extending overall wheel assembly lifespan.
Q: How should this wheel be stored when not in use?
A: Store the wheel in a cool, dry location away from direct sunlight and extreme heat to preserve polyurethane compound integrity. Keep the wheel in an upright position if possible to prevent flat-spotting of the tread. Avoid storing near oil, solvents, or reactive chemicals that may degrade the polyurethane material.
Q: What maintenance practices extend the life of this Raymond load wheel?
A: Regularly inspect the tread for wear patterns, cracks, or embedded debris. Ensure bearing seals remain intact and rotate the wheel by hand to detect any binding or roughness. Clean the wheel periodically with mild soap and water; avoid harsh chemicals. Monitor tread thickness and replace when wear approaches the bearing seat interface.
