Product Description

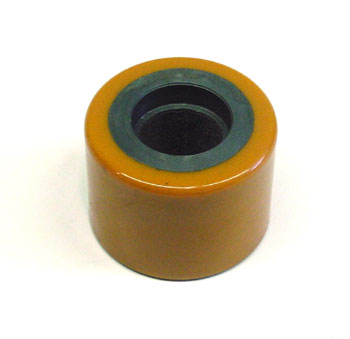

Raymond OEM load wheel (RA 631-031-007) designed for electric reach fork trucks, features a 4.000 inch outside diameter, 2.880 inch width, 2.047 inch bore, smooth polyurethane tread at 95 Shore A hardness, and is fitted with a 6205 deep groove ball bearing for precision durability under heavy-duty warehouse conditions. Direct cross for 632-031-007 and 632-031-107, compatible with multiple Raymond reach-fork truck models.
Specifications
Material & Construction
| Core Material | Machined steel core |
| Tread Material | High performance cast polyurethane |
Mechanical Specifications
| Outside Diameter | 4.000 inch |
| Width | 2.880 inch |
| Bore | 2.047 inch |
| Bearing Type | Deep groove ball bearing, type 6205 |
| Tread Hardness | 95 Shore A (polyurethane compound) |
| Assembly Type | Load wheel supplied with prefitted 6205 bearing |
Part Numbers & Compatibility
| Part Number | RA 631-031-007 |
| Cross-Reference Part Numbers | 632-031-007; 631-031-107; 632-031-107 |
| Compatible Raymond Truck Series | 7200, 7300, 7400, 7500, 7600 Series Reach-Fork Trucks; RRS and RSS Walkie Reach Trucks |
Frequently Asked Questions
Q: What are the physical dimensions of the RA 631-031-007 load wheel?
A: The RA 631-031-007 has a 4.000 inch outside diameter, 2.880 inch width, and 2.047 inch bore. It is fitted with a 6205 deep groove ball bearing.
Q: What material and hardness specification does the RA 631-031-007 polyurethane tread have?
A: The RA 631-031-007 features high performance cast polyurethane tread at 95 Shore A hardness on a machined steel wheel core, designed for durability under heavy-duty warehouse conditions.
Q: What are the cross-reference part numbers for the RA 631-031-007?
A: Direct cross-references include Raymond 632-031-007, Crown 632-031-007, Raymond 631-031-107, and Crown 632-031-107.
Q: Which Raymond truck models is the RA 631-031-007 compatible with?
A: The RA 631-031-007 is designed for multiple Raymond reach-fork truck models and electric reach equipment in warehouse applications.
Q: What wheel core material is used in the RA 631-031-007?
A: The RA 631-031-007 wheel core is manufactured from machined steel for strength and precision fit with the 6205 bearing.
