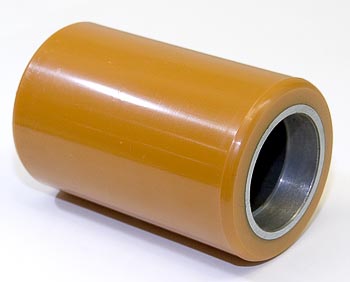

Raymond Load Wheel Assembly 3.25 Diameter
RA 632-016
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
Raymond Load Wheel Assembly — Premium replacement wheel for Raymond electric pallet trucks, featuring durable 95A polyurethane tread bonded to cast iron for reliable performance. Includes dual sealed 6205-2RS ball bearings and precision machining for direct replacement compatibility. Ideal for standard warehouse and material handling operations.
Specifications
Material & Construction
| Tread Material | 95A hardness polyurethane (95A Poly) |
| Wheel Core Material | Cast iron core |
| Polyurethane Hardness | 95 Shore A |
| Wheel Finish | Precision machined, factory polyurethane bonded |
Mechanical Specifications
| Wheel Bearing Type | Deep groove ball bearing, type 6205-2RS, sealed |
Part Numbers & Compatibility
| Part Number | RA 632-016 |
| Manufacturer Part Number | 632-016 |
| Cross-Reference Part Numbers | Replaces 632-016, RA632-016-001, 632-016-001, RA 632-016-001-A; equivalent to RA632016001 |
| Compatible Equipment Models | Raymond 101 Series, 8300, 8400, 8500, 8600, 8900 electric pallet trucks |
| UNSPSC Code | 31162702 |
| Alternate Designation | 3VLS105AS-RA |
Frequently Asked Questions
Q: What equipment does the RA 632-016 load wheel fit?
A: The RA 632-016 is a direct replacement for Raymond 101 Series electric pallet trucks. It is also compatible with Raymond 8300, 8400, 8500, 8600, and 8900 series models. Verify your equipment model before ordering to confirm fitment.
Q: What are the dimensions and material specifications of the RA 632-016?
A: This load wheel assembly features a bonded polyurethane (95A durometer) mounted on cast iron, with dual 6205-2RS sealed ball bearings. The smooth tread profile is designed for standard material handling applications.
Q: What cross-reference and equivalent part numbers does the RA 632-016 have?
A: The RA 632-016 replaces part number 632-016 and supersedes RA632-016-001, 632-016-001, and RA 632-016-001-A. Cross-reference equivalents include RA632016001 and other variants. If you have an older part number, compare the dimensions and bearing specifications to confirm compatibility.
Q: What bearing type does the RA 632-016 use?
A: The RA 632-016 uses deep groove ball bearings, type 6205-2RS with sealed design. Before ordering, verify that your equipment calls for sealed 6205 bearings. Do not mix sealed and open bearing types on the same axle, as this can cause accelerated wear.
Q: Is the RA 632-016 suitable for wet or cold storage environments?
A: The RA 632-016 features a standard 95A polyurethane compound and sealed bearings suitable for typical material handling conditions. For continuous wet floor or cold storage applications, consider upgrading to wheels with high-traction polyurethane formulations. Sealed bearings provide protection in moist environments but are not rated for freezer service.
Q: What is the typical service life of the RA 632-016 load wheel?
A: Service life depends on load weight, floor condition, and operating hours. Polyurethane wheels typically last 2–5 years in normal warehouse use. Sealed bearings extend component life by reducing water and contaminant ingress. Inspect wheels quarterly for flat spots, cracks, or bearing play. Replace if tread damage affects load stability.
