Product Description

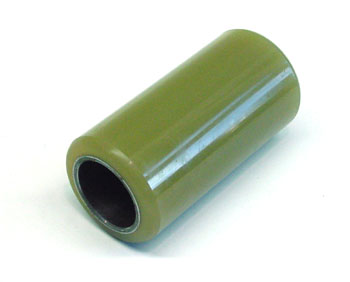

Raymond RA 632-032-003 Load Wheel mounts on 7200–7600 Reach-Fork and RSS/RRS Walkie Reach Trucks. 4.00 inch outside diameter, 2.88 inch wide, 2.047 inch bore. Constructed with high-carbon poly, 95 Shore A durometer, smooth tread, and steel hub for press-fit 6205 bearing.
Specifications
Material & Construction
| Hub Material | Steel |
| Finish | Machine-finished |
Part Numbers & Compatibility
| OEM Part Number | RA 632-032-003 |
| Compatible Models | Raymond 7200, 7300, 7400, 7500, 7600 Series Reach-Fork® Trucks; RRS and RSS Walkie Reach Trucks |
Frequently Asked Questions
Q: What are the dimensions and bore size for the RA 632-032-003 load wheel?
A: The RA 632-032-003 has a 4.00 inch outside diameter, 2.88 inch tread width, and a 2.047 inch bore. The machine-finished steel hub accepts a press-fit 6205 bearing. These dimensions are critical for proper axle mounting, so verify measurements before ordering if replacing a damaged wheel.
Q: What is the material composition and hardness of the RA 632-032-003?
A: This load wheel is constructed of high-carbon polyurethane with a 95 Shore A durometer rating. The tread is smooth and cast on a steel hub core. The 95A hardness provides good load capacity and floor grip for warehouse operations without the extreme hardness of 98A compounds.
Q: Which Raymond truck models are compatible with RA 632-032-003?
A: The RA 632-032-003 fits Raymond 7200, 7300, 7400, 7500, and 7600 Series Reach-Fork trucks, as well as RRS and RSS Walkie Reach Trucks. Check your equipment serial number range to confirm compatibility before purchasing.
Q: Does the RA 632-032-003 come with a bearing pre-installed?
A: The RA 632-032-003 is the wheel body only and does require a 6205 bearing to be press-fit into the steel hub. It does not come assembled with the bearing. If you need a complete ready-to-mount assembly, verify that you order the correct model variant.
Q: What bearing size should be used with this wheel?
A: The 6205 sealed deep groove ball bearing is the standard for 4-inch diameter load wheels in this size range. The bearing press-fit into the 2.047 inch bore provides smooth rotation and load support on the axle assembly.
