Product Description

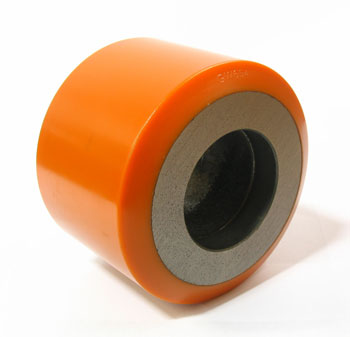

Raymond RA 632-052-003 Load Wheel is an OEM-equivalent polyurethane load wheel featuring a 5 inch outside diameter, 3.625 inch tread width, and 2.047 inch precision bore, with dual 6305-2RS sealed bearings, suitable for Raymond electric pallet trucks and reach trucks. Industrial-grade materials and exact dimensions ensure fit and durability in warehouse applications.
Specifications
Material & Construction
| Wheel Material | Polyurethane, XL Grade |
| Core Material | Steel core |
Part Numbers
| OEM Part Number | RA 632-052-003 |
| Replaces/Supersedes | Supersedes 632-052-107 |
| Equivalent Part Number | RA632-052-003-XL |
Frequently Asked Questions
Q: What are the exact dimensions of the RA 632-052-003 load wheel?
A: The RA 632-052-003 has a 5 inch outside diameter, 3.625 inch tread width, and 2.047 inch precision bore diameter. These dimensions make it compatible with standard 6305 bearing assemblies used in Raymond electric pallet trucks and reach trucks.
Q: What bearing type does this load wheel use and why?
A: This wheel is equipped with dual 6305-2RS sealed bearings. The 2RS designation means the bearings are sealed on both sides with rubber contact seals, protecting against dirt, moisture, and contamination. Sealed bearings require minimal maintenance and are suited for warehouse and outdoor environments.
Q: What is the material construction of the RA 632-052-003?
A: This load wheel uses XL-grade polyurethane tread bonded to a steel core hub. The polyurethane provides grip and wear resistance while the steel core delivers structural strength and load capacity. This construction is standard for industrial-grade material handling equipment.
Q: Does the RA 632-052-003 supersede any earlier part numbers?
A: Yes, this wheel supersedes part number 632-052-107. It is also cross-referenced as RA632-052-003-XL. Verify dimensions match your existing wheels before ordering as replacements to ensure bore and width compatibility.
Q: What equipment types are compatible with the RA 632-052-003?
A: This load wheel is designed for Raymond electric pallet trucks and reach trucks. The sealed bearings and polyurethane construction provide durability in distribution centers and warehouses. Confirm your truck model and current wheel specifications before ordering.
