Product Description

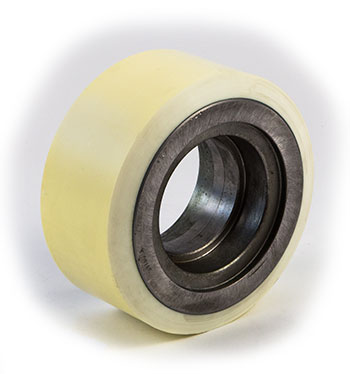

SU 9160-XL is a high performance load wheel manufactured for electric lift truck parts, engineered with American-made XL3™ polyurethane bonding for maximum cut and tear resistance, suitable for heavy duty pallet truck applications. Standard assembly options include pre-pressed sealed bearings. Compatible for retrofit and replacement in electric pallet trucks requiring superior duty cycles.
Specifications: 6.000 inch diameter x 2.880 inch width (6.000" x 2.880" | 6 x 2.88 wheel | 6 x 2-7/8 | 152.40mm x 73.15mm)
Specifications
Material & Construction
| Core Material | Steel, precision finished for optimal bonding |
| Bonding Agent | XL3™ proprietary polyurethane-to-steel bonding |
Part Numbers
| Manufacturer Part Number | SU 9160-XL |
| OEM Part Number | SU 9160-XL |
Performance
| Duty Cycle Rating | Rated for highest duty cycle tolerance among load wheel grades |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 6 |
| Inside Diameter | 2.947 |
| Width Side to Side | 2.88 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.827 |
| Bore Outside Diameter | 3.1471 |
Frequently Asked Questions
Q: What is the SU 9160-XL wheel diameter and width?
A: The SU 9160-XL has a 6.000 inch outside diameter and 2.880 inch width (also expressed as 6 x 2.88 wheel or 6 x 2-7/8 inches, equivalent to 152.40mm x 73.15mm).
Q: What makes the SU 9160-XL suitable for heavy duty applications?
A: The SU 9160-XL uses XL3 proprietary polyurethane-to-steel bonding agent and American-made Cushothane XL material engineered for maximum cut and tear resistance. It is rated for the highest duty cycle tolerance among load wheel grades.
Q: Does the SU 9160-XL come with bearing assemblies?
A: The SU 9160-XL is available with pre-pressed sealed bearings as a standard assembly option. Verify your order specifications to confirm bearing inclusion and type.
Q: Can the SU 9160-XL be used for retrofit applications?
A: Yes. The SU 9160-XL is engineered for retrofit and replacement in electric pallet trucks requiring superior duty cycle performance. Confirm axle shaft diameter and mounting hole configuration match your existing jack before installation.
Q: What is the core material of the SU 9160-XL?
A: The core material is precision-finished steel, designed to provide optimal bonding with the XL3 polyurethane bonding agent for maximum durability and performance.
