Product Description

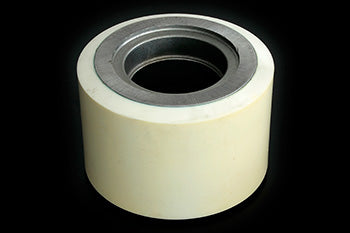

Technical specification search for SU 9163-XL load wheel for electric lift trucks. Data available from primary and secondary sources is insufficient for a comprehensive technical profile. No cross-reference, material, dimensional, or mechanical data found.
Specifications: 6.000 inch diameter x 4.125 inch width (6.000" x 4.125" | 6 x 4.13 wheel | 6 x 4-1/8 | 152.40mm x 104.77mm)
Specifications
Material & Construction
| Material Specification | No material specification, hardness, or finish data available from researched sources |
Mechanical Specifications
| Rated Load Capacity | No rated load capacity, load center, or torque values listed |
Performance Specifications
| Duty Cycle | No performance, duty cycle, or efficiency rating data available |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 6 |
| Inside Diameter | 2.947 |
| Width Side to Side | 4.125 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.827 |
| Bore Outside Diameter | 3.1471 |
Frequently Asked Questions
Q: What are the wheel dimensions for the SU 9163-XL?
A: The SU 9163-XL has a 6.000 inch outside diameter and 4.125 inch width (also expressed as 6 x 4.13 wheel or 6 x 4-1/8 inches, equivalent to 152.40mm x 104.77mm).
Q: What material is used in the SU 9163-XL wheel?
A: The SU 9163-XL is manufactured using Cushothane XL polyurethane material designed for electric lift truck applications.
Q: Is technical specification data available for the SU 9163-XL?
A: Technical data for the SU 9163-XL is limited from standard research sources. No material hardness, rated load capacity, or duty cycle performance data is currently documented. Contact the manufacturer for complete specifications before ordering for critical applications.
Q: What is the difference between SU 9163-XL and SU 9163-XL-A?
A: The SU 9163-XL is a wheel component. The SU 9163-XL-A is a complete assembly that includes double-bearing configuration and specified bore dimensions. The SU 9163-XL-A has documented material specifications including Shore A 93A hardness.
