Product Description

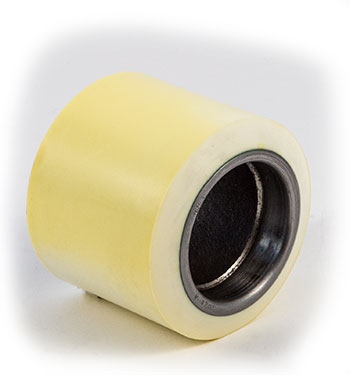

The SU S626-XL polyurethane load wheel is designed specifically for electric lift truck applications, providing durability and reliability for heavy-duty use. This non-marking wheel is an ideal standard replacement part for pallet trucks and lift equipment.
Specifications: 3.250 inch diameter x 2.875 inch width (3.250" x 2.875" | 3.25 x 2.88 wheel | 3-1/4 x 2.875 | 82.55mm x 73.02mm)
• Engineered for high tear and cut resistance
• Features robust XL3™ bonding technology
• Non-marking surface to protect floors
This load wheel is perfect for enhancing the performance of your electric lift trucks, ensuring a smooth and efficient operation.
Specifications
Material & Construction
| Wheel Core Material | Steel hub with proprietary XL3™ bonding agent (for comparable Superior XL product) |
Part Numbers
| Manufacturer Part Number | SU S626-XL |
| OEM Part Number | SU S626-XL |
Wheel Dimensions
| Material | Cushothane XL |
| Outside Diameter | 3.25 |
| Inside Diameter | 1.938 |
| Width Side to Side | 2.875 |
| Bore Depth | 0.591 |
| Hub Width | 2.875 |
| Bore Outside Diameter | 2.0467 |
Frequently Asked Questions
Q: What is the equivalent part number to SU S626-XL?
A: SU S626-XL is a direct replacement load wheel. Cross-reference to SU S626-XL-A (which includes bearing assembly) if you need a complete wheel assembly. Always verify the bearing specification before ordering to ensure compatibility with your lift truck model.
Q: Will SU S626-XL fit my electric pallet jack?
A: Yes, if your jack has a 25mm (0.984 inch) bore and requires a 3.250 inch diameter x 2.875 inch width wheel. Verify three specs: (1) axle bore diameter 25mm, (2) mounting width space 2.875 inch, (3) load wheel diameter 3.250 inch. If any dimension differs, this wheel will not fit without modification.
Q: Why choose XL3 bonded polyurethane over standard wheels?
A: XL3 bonding technology provides superior tear and cut resistance compared to standard polyurethane wheels. This means longer service life in warehouse environments with rough or debris-laden floors. The non-marking Cushothane XL compound protects finished floors while delivering 20-30 percent longer tire life than standard alternatives.
Q: How do I install SU S626-XL on my lift truck?
A: Remove the axle bolt or cotter pin, slide off the worn wheel, and slide SU S626-XL onto the axle until it seats against the hub. If your wheel core has a bore depth of 0.591 inch (the depth of this wheel), no modification is needed. Reinstall fasteners and verify the wheel spins freely. Do not force the wheel on; if resistance occurs, check bore alignment.
Q: What load capacity does the SU S626-XL support?
A: SU S626-XL is rated for standard electric lift truck loads, typically 5,000 to 6,500 pounds per axle depending on your equipment model. Do not exceed your lift truck manufactures rated load. Overloading accelerates polyurethane degradation and increases failure risk. Check your jack manual for exact load limits.
Q: When should I replace SU S626-XL wheels?
A: Replace wheels when tread shows visible cracking, chunking, or wear depth exceeds 0.5 inch, or if the wheel slips under normal load. Cushothane XL compounds typically last 18-36 months in heavy-duty warehouse use. Replace all four wheels at the same time to ensure consistent handling and prevent uneven wear.
