Product Description

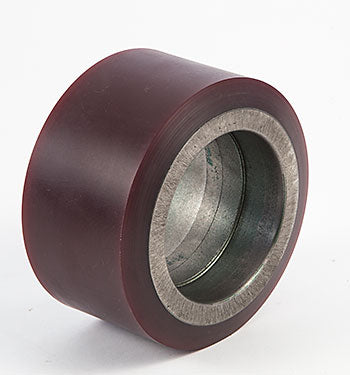

LOAD WHEEL
Specifications: 5.000 inch diameter x 2.875 inch width (5.000" x 2.875" | 5 x 2.88 wheel | 5 x 2-7/8 | 127.00mm x 73.02mm)
Specifications
Wheel Dimensions
| Material | |
| Outside Diameter | 5 |
| Inside Diameter | 3 |
| Width Side to Side | 2.875 |
| Tread Profile | 3/8 Radius |
| Bore Depth | 0.983 |
| Hub Width | |
| Bore Outside Diameter | 3.1491 |
Frequently Asked Questions
Q: What are the exact dimensions of the SU S9152 load wheel?
A: The SU S9152 is 5.000 inches (127.00 mm) in outside diameter and 2.875 inches (73.02 mm) in width. The bore is 3.1491 inches in diameter with a bore depth of 0.983 inches. The tread profile is a 3/8 radius. These dimensions define compatibility with specific lift truck models, so verify exact fitment before ordering.
Q: Is the SU S9152 a complete wheel assembly or just the tire?
A: The SU S9152 is a load wheel component. Confirm with your parts supplier whether it includes the hub, bearings, and tire bonded as a complete assembly, or if it is a tire only. The part number alone does not indicate assembly configuration. Check the product specification sheet or technical drawing for clarity on what is included.
Q: What lift truck models is the SU S9152 compatible with?
A: The 5.000 x 2.875 dimension is used on walkie pallet jacks, electric stackers, and some small forklifts from various OEMs. Without your specific equipment model and serial number, matching is difficult. Cross-reference your current wheel part number and equipment documentation. Contact your lift truck manufacturer or OEM parts supplier with your equipment details to confirm compatibility.
Q: What material is the SU S9152 wheel made from?
A: The SU S9152 specifications list outside and inside diameters, width, bore dimensions, and tread profile, but do not specify tire material or core material in the provided specs. Contact the supplier for complete material specifications including polyurethane compound type, core material, and bearing type.
Q: Can the SU S9152 be used as a replacement for other 5-inch diameter wheels?
A: Not automatically. While the outside diameter is 5.000 inches, the width (2.875 inches) and bore dimensions (3.1491 inch OD, 0.983 inch depth) must match exactly. A wheel that is 5 inches in diameter but with different width or bore dimensions will not fit your axle correctly. Always verify all dimensions before substitution.
