Product Description

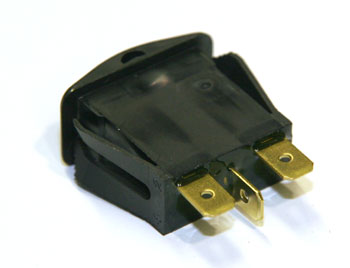

Raise and lower switch LP 393-9906 for electric lift trucks, SPDT on-off-on configuration, direct replacement for multiple OEM and cross reference part numbers, panel mount design for forklift and electric pallet jack controls.
Specifications
Electrical
| Contact Rating | SPDT circuit, on-off-on function |
Part Numbers
| Cross-Reference Part Numbers | TY 00591-73985-81, YT 220042501, YT 800018687, 062595-001, HY 800018665, LP 393-9904, SW 1792, TY 00591-73979 |
| OEM Part Number | 062595-001 |
| Supersedes/Replaces | TY 00591-73985-81, YT 220042501, YT 800018687, HY 800018665 |
| Alternate Part Number | LP 393-9904 |
Frequently Asked Questions
Q: What is the circuit configuration for the LP 393-9906 raise and lower switch?
A: The LP 393-9906 features SPDT (Single Pole Double Throw) configuration in an on-off-on function. This design allows independent control of raise and lower operations on electric lift trucks and pallet jacks.
Q: Which OEM part numbers does the LP 393-9906 replace?
A: The LP 393-9906 replaces OEM part number 062595-001 and supersedes multiple cross-references including TY 00591-73985-81, YT 220042501, YT 800018687, and HY 800018665. It is also compatible with LP 393-9904 and cross-references SW 1792 and TY 00591-73979.
Q: What lift truck brands use this raise and lower switch?
A: The LP 393-9906 is a direct replacement for multiple OEM manufacturers. Compatible with electric forklifts and pallet jacks from Toyota, Hyster, and Yale among others. Verify your specific equipment model.
Q: Is the LP 393-9906 suitable for electric pallet jack controls?
A: Yes. The LP 393-9906 is designed for both electric forklift and electric pallet jack applications with panel-mount configuration. Its SPDT on-off-on circuit handles raise and lower directional control.
Q: How does the on-off-on design improve lift truck operation?
A: The on-off-on configuration provides three distinct positions: raise, neutral (off), and lower. This allows operators intuitive directional control and automatic return to neutral, enhancing safety and preventing unintended mast movement.
Q: Can the LP 393-9906 replace older part numbers like SW 1792?
A: Yes. The LP 393-9906 is engineered as a direct replacement for obsolete part numbers including SW 1792 and TY 00591-73979. Confirm dimensional and electrical compatibility with your control panel.
