Lug Bolt for Hyster W 40 XL, W 40 XT
HY 16820
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

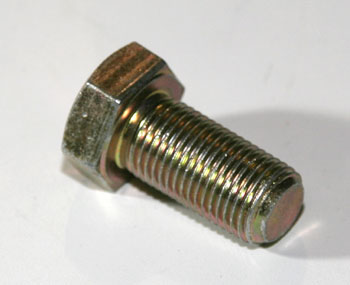

Hyster OEM Lug Bolt HY 16820 for electric lift truck wheels—hex head, 1/2 inch diameter, 1/2-20 UNF thread, 1 inch length—compatible with Hyster W 40 XL/XT, standard industry Grade 8 hardware.
Specifications
Dimensional Specifications
| Diameter | 1/2 inch |
| Length | 1 inch |
| Thread Type | 1/2-20 UNF |
| Thread Pitch | 20 threads per inch (TPI) |
| Grade | Grade 8 |
| Head Type | Hex Head |
Part Numbers
| Hyster Part Number | HY 16820 |
| Alternative Part Number | HY16820, 16820 |
| Compatible Models | Hyster W 40 XL, Hyster W 40 XT |
Frequently Asked Questions
Q: Which Hyster models are compatible with the HY 16820 lug bolt?
A: The HY 16820 lug bolt is designed for Hyster W 40 XL and Hyster W 40 XT electric lift trucks. It fastens wheel assemblies with hex head fastening. Verify your exact model designation before ordering to confirm fitment.
Q: What are the exact specifications of the HY 16820 lug bolt?
A: The HY 16820 is a Grade 8 hex head lug bolt with 1/2 inch diameter, 1/2-20 UNF thread pitch, and 1 inch length. These specifications meet OEM standards for Hyster electric lift truck wheel assembly fastening. Cross-reference part numbers: 16820, Hyster 16820, HY16820.
Q: Why is Grade 8 material important for the HY 16820?
A: Grade 8 fasteners provide high tensile strength and load-bearing capacity required for wheel hub fastening on lift trucks. This material grade ensures fastener reliability under the repetitive stresses and lateral forces generated during loading, turning, and braking operations.
Q: How many HY 16820 bolts are needed per wheel assembly?
A: Wheel hub configuration varies by model. Hyster W 40 XL and W 40 XT trucks typically use multiple lug bolts per wheel. Consult your equipment manual or technical schematic to determine the exact quantity required for your assembly.
Q: Are there equivalent lug bolts that work as substitutes for the HY 16820?
A: Standard Grade 8 fasteners with 1/2 inch diameter, 1/2-20 UNF thread, and 1 inch length meet specification. However, we recommend using OEM Hyster HY 16820 or verified cross-reference part numbers to ensure exact fit and load rating compliance.
Q: What fastener torque specification should I use with the HY 16820?
A: Consult your Hyster W 40 XL or W 40 XT technical manual for the exact torque specification. Do not rely on general Grade 8 fastener recommendations—OEM specifications account for hub material, design, and safety requirements specific to your lift truck model.
