Roll Pin for Magnum/Handjak 55 Model 5000
MG 520
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

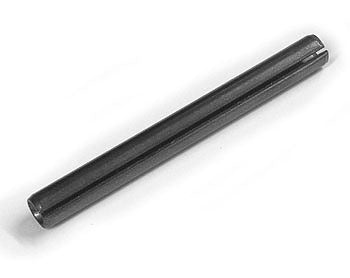

MG 520 is a roll pin for Magnum manual pallet jack handle and linkage assembly, constructed of heat-treated carbon steel with standard split pin design. Suitable for press-fit installation in critical pivot points, MG 520 conforms to industry roll pin standards and typical pin dimensions for manual pallet truck applications.
Compatibility: Fits pallet jacks made by Magnum, model 5000. SKU: MG 520
Specifications
Material & Construction
| Surface Finish | Plain finish (uncoated) |
Part Numbers
| OEM Part Number | MG 520 |
| Manufacturer Part Number | MG 520 |
Frequently Asked Questions
Q: What is the MG 520 used for on manual pallet jacks?
A: The MG 520 is a roll pin designed for handle and linkage assembly pivot points on Magnum Model 5000 manual pallet jacks. It provides structural integrity in critical stress areas.
Q: What material is the MG 520 constructed from?
A: The MG 520 is constructed of heat-treated carbon steel with a standard split pin design. The heat treatment provides durability for press-fit installation in high-stress applications.
Q: What pallet jack models use the MG 520?
A: The MG 520 is compatible with Magnum Model 5000 manual pallet trucks and fits standard handle and linkage assembly configurations.
Q: What is the surface finish of the MG 520?
A: The MG 520 features a plain finish (uncoated) that provides a clean surface for press-fit installation and connection with assembly components.
Q: What installation method is used for the MG 520?
A: The MG 520 is designed for press-fit installation in pivot points, where the pin is seated firmly into prepared holes during assembly configuration.
