Magnum

MG 144

  • MG 144, Snap Ring
$0.34 off

MG 144

Snap Ring

$0.99
$0.99 $1.33

Questions? Call +1-800-669-7554
5000 Hydraulic Unit Magnum Intrupa Manual Pallet Jack Parts Snap Rings

Compatibility

Make Magnum/Handjak 55
Model 5000

Reference Diagrams

Visit our diagram page for part references to popular models

  • • appears in Magnum (Intrupa) 5000 Hydraulic Unit Diagram

    • Product Description

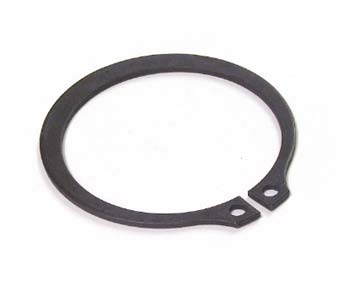

    Magnum MG 144 snap ring is an external retaining ring for Magnum 5000 manual pallet jack hydraulic assemblies, manufactured from ASTM A228 spring steel. Designed for static retention, it features a 2.50 inch nominal groove diameter, Rockwell C45 minimum hardness, and SAE 1070-1090 grade material. Cross-reference and supersession part numbers not available for MG 144.

    Compatibility: Fits pallet jacks made by Magnum, model 5000. SKU: MG 144

    Specifications

    Dimensional Specifications
    Clearance RequirementsRequires minimum 0.005 inch radial clearance on installation
    Material & Construction
    Steel GradeSAE 1070-1090 high carbon
    Mechanical Specifications
    Material SpecificationSpring steel in accordance with ASTM A228
    HardnessRockwell C45 minimum
    FinishPlain oil finish
    Service ApplicationDesigned for static retention of hydraulic pistons in Magnum 5000 series manual pallet jack units
    Part Numbers
    Manufacturer Part NumberMG144
    OEM Part NumberMG144
    Compatible ModelsMagnum 5000 manual pallet jack hydraulic unit

    How do I know if this item is compatible with my equipment?

    The compatible make and model for this part is located in the product description, however, you can reach out to our team of experts and they can help assure you are finding the part you need.

    Can I return this item?

    All items are returnable as long as they are shipped back within 30 days in unused condition with their original packaging. More information can be found in our return policy.
