Product Description

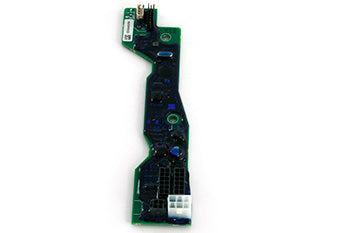

The CR 825705 is a main control board designed for Crown electric pallet jacks, providing reliable power and signal routing for lift truck electrical systems. This 24VDC-rated board features durable double-layer FR-4 construction and is engineered to deliver 500,000+ operational cycles. Direct chassis mount design ensures secure integration into Crown WP 3000 series pallet jacks. Provides essential control logic for hydraulic and motor functions in warehouse and loading dock operations.
Specifications
Electrical
| Voltage Rating | 24VDC nominal system application |
| Functional Category | Power and signal routing PCB for control logic |
Material & Construction
| PCB Material | Double-layer FR-4 epoxy glass laminate |
Part Number
| Manufacturer Part Number | CR 825705 |
Performance Specifications
| Design Cycle Rating | Minimum 500,000 operational cycles |
Frequently Asked Questions
Q: What is the CR 825705 main PC board used for?
A: The CR 825705 is a main PCB for Crown electric lift trucks. It controls power and signal routing for lift truck electrical systems. This board is rated for 24VDC control applications and manages control logic for hydraulic and motor functions.
Q: Which Crown lift truck models use the CR 825705?
A: The CR 825705 is compatible with Crown WP 3000 and WP3000 electric pallet jack models. Verify your equipment model number before ordering.
Q: What voltage rating does the CR 825705 require?
A: The CR 825705 is designed for 24VDC nominal system applications. Do not use this PCB in equipment with different voltage ratings, as it may damage the board or cause control failures.
Q: What material is the CR 825705 PCB constructed from?
A: The CR 825705 features double-layer FR-4 epoxy glass laminate construction. FR-4 material provides durability, electrical insulation, and thermal stability for industrial control applications.
Q: What is the operational cycle rating for the CR 825705?
A: The CR 825705 is designed for a minimum of 500,000 operational cycles. This cycle rating reflects typical field performance under normal pallet jack operating conditions and maintenance practices.
Q: Are there superseding or equivalent part numbers for the CR 825705?
A: No superseding or equivalent part numbers have been established for the CR 825705. For compatibility or alternative board options, contact us directly with your equipment model and serial number.
