Product Description

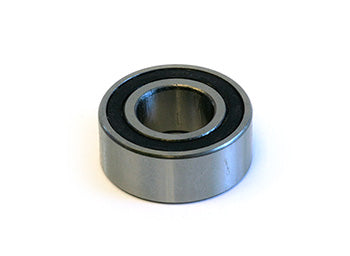

MAST BEARING
Specifications
Product Overview
| Product Type | Mast Bearing Assembly |
Physical Specifications
| Race Material | Hardened Steel |
| Ball Material | Precision-Grade Steel |
| Cage Material | Bronze or Composite |
| Load Type | Lateral and Radial |
| Load Rating | Heavy-Duty (exceeds standard pump bearing capacity) |
| Typical Service Life | 4-6 years under normal operating conditions |
| High-Cycle Service Life | 2-3 years in high-frequency picking applications |
| Annual Maintenance | Visual inspection for movement and audible noise |
Compatibility
| Compatible Equipment Type | Manual Pallet Jacks with Single-Stage or Double-Stage Masts |
Frequently Asked Questions
Q: What is a mast bearing and how does it differ from a pump bearing?
A: The 00591-30416-81 mast bearing supports the vertical mast stack and manages lateral load as the mast extends. Unlike pump bearings that handle axial pressure, mast bearings absorb side forces from tilting loads and uneven weight distribution. This bearing requires a heavier load rating and different mounting configuration.
Q: Which pallet jack models use the 00591-30416-81 mast bearing?
A: The 00591-30416-81 is compatible with manual pallet jacks from Crown, Toyota, Raymond, and Yale that use a double-stage or single-stage mast with standard bearing bore dimensions. Verify mast width, bearing bore diameter, and mounting clip configuration before ordering. Check the mast nameplate or service manual for exact specifications.
Q: What symptoms indicate the 00591-30416-81 mast bearing is failing?
A: Signs of mast bearing failure include lateral play or wobbling as the mast extends, grinding or squealing noises from the mast assembly, difficulty keeping the load level during lifting, and visible side-to-side movement when the jack is fully raised. These indicate the bearing seat has worn and requires replacement.
Q: How do I install the 00591-30416-81 mast bearing replacement?
A: Lower the mast completely and release hydraulic pressure. Remove the mounting clips and slide the old bearing out of the mast rail. Press the new 00591-30416-81 bearing into the bore until it seats fully. Ensure the bearing sits level and centered in the rail. Reinstall clips, check alignment, and test mast operation before returning the jack to service.
Q: How long does the 00591-30416-81 mast bearing last before replacement is needed?
A: Typical service life is 4 to 6 years under normal operating conditions. High-cycle picking operations or jacks that frequently handle tilted or off-center loads may require replacement every 2 to 3 years. Inspect annually for movement or noise. Extend bearing life by ensuring loads are centered before lifting and avoiding repeated tilting cycles.
Q: What material specifications define the 00591-30416-81 mast bearing?
A: The 00591-30416-81 mast bearing uses hardened steel races and precision-grade steel balls rated for lateral and radial load absorption. The bearing cage is typically bronze or composite material. Load rating is higher than standard pump bearings to handle the dynamic forces generated by tilted loads and repeated mast cycling.
