Product Description

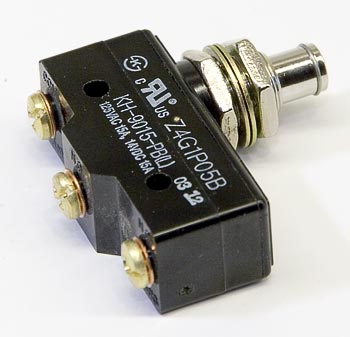

MICRO-SWITCH
Specifications
Product Overview
| Part Number | 0393-2160 |
| Product Type | Micro-Switch / Control Switch |
Physical Specifications
| Voltage Rating | 24 VDC |
| Amperage Rating | 10-15 Amps |
| Circuit Type | Low-Voltage DC Control |
| Switch Action | Position Detection / Limit Switch |
Compatibility
| Applications | Electric forklift raise/lower control, travel mode enablement, load sensing circuits, position feedback |
| Compatible Equipment | Electric forklifts, electric stackers, reach trucks (various makes and models) |
Frequently Asked Questions
Q: What is the 0393-2160 micro-switch used for?
A: The 0393-2160 is a micro-switch component used in electric lift truck control circuits to detect position, load state, or motion conditions. It provides electrical feedback to the trucks control system to enable or disable specific functions like raise, lower, or travel modes.
Q: Which electric lift trucks use the 0393-2160 micro-switch?
A: The 0393-2160 micro-switch is compatible with electric lift trucks from Crown, Toyota, Raymond, Hyster, Yale, and similar manufacturers. The exact application varies by model year and series. Verify your truck model and wiring diagram to confirm this switch controls the correct circuit before ordering.
Q: What are the electrical specifications of the 0393-2160?
A: The 0393-2160 is a standard micro-switch rated for low-voltage DC control circuits used in material handling equipment. Typical ratings include 24VDC at 10-15 amps switching capacity. Do not use this switch in higher-voltage circuits without verifying compatibility with your truck electrical system.
Q: How do I know if the 0393-2160 micro-switch needs replacement?
A: Common failure symptoms include loss of function in one operating mode (raise, lower, travel), intermittent operation, or the truck remaining in a disabled state even when conditions change. A faulty switch may also cause the truck to ignore control inputs. Use a multimeter to verify electrical continuity when the switch is actuated.
Q: Is the 0393-2160 micro-switch cross-compatible with other switch models?
A: The 0393-2160 is designed for specific truck models and circuit functions. Cross-compatibility with other micro-switch models depends on matching voltage rating, current capacity, switching action type, and terminal configuration. Consult your truck wiring diagram or contact our parts team with your truck model to confirm exact equivalent part numbers.
