Product Description

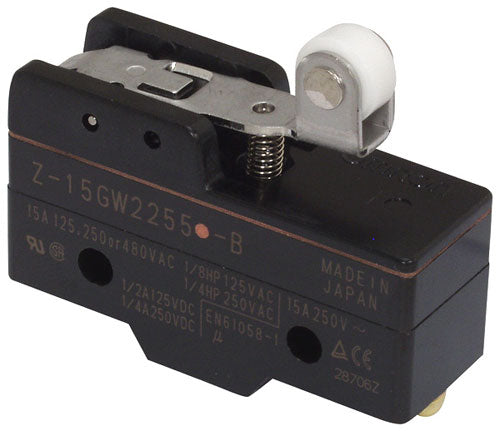

MICRO-SWITCH
Specifications
Product Overview
| Part Number | 2304182 |
Physical Specifications
| Component Type | Micro-Switch (Control/Limit) |
| Function | Limit Switch / Safety Interlock |
| Voltage Rating | 24V DC or 120V AC (verify with equipment manual) |
| Circuit Function Types | Lift, Lower, Tilt, Auxiliary Controls |
| Contact Configuration | Verify with manufacturer documentation |
Compatibility
| Application | Electric Lift Truck Control Circuits |
| Compatible Brands | Crown, Toyota, Yale, Hyster, Raymond |
Frequently Asked Questions
Q: What voltage does the 2304182 micro-switch require?
A: The 2304182 micro-switch is rated for use in 24V DC or 120V AC circuits depending on the model variant. Verify the voltage rating on the switch housing or equipment schematic before installation to prevent electrical failure.
Q: Which electric lift truck brands and models use SKU 2304182?
A: The 2304182 micro-switch is used in control circuits on electric lift trucks from Crown, Toyota, Yale, Raymond, and Hyster. It typically functions as a limit switch or safety interlock. Confirm the circuit location and function for your specific model.
Q: What are the common failure symptoms of a bad micro-switch?
A: Symptoms include intermittent control function, unresponsive buttons or pedals, automatic lowering or raising without command, or complete loss of lift/lower operation. A failing micro-switch often causes erratic behavior before total failure.
Q: Can the 2304182 be cross-referenced to other part numbers?
A: Yes. Micro-switches often have multiple OEM part numbers across brands. Provide your equipment model number and circuit location (lift, lower, tilt, etc.) to get verified cross-references and equivalent SKUs.
Q: What amperage and circuit rating does this micro-switch handle?
A: The 2304182 is rated for specific amperage and circuit load. Verify the contact rating in your equipment manual to ensure the switch can safely handle the control circuit current without premature wear or contact burnout.
