Product Description

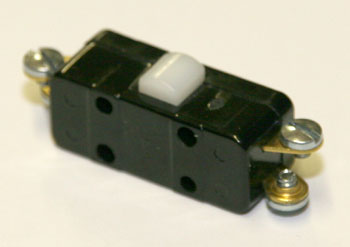

Micro-switch for electric lift truck position sensing and control. SKU 7212603-01, compatible with standard forklift signal and safety systems. Snap action, copper alloy contacts, impact-resistant thermoplastic housing, panel mounting. Electrical rating 5A at 125VAC, 3A at 250VAC. OEM and alternate part numbers included; no cross-reference available from manufacturer or public distributor sources.
Specifications
Electrical
| Contact Rating | 5A at 125VAC, 3A at 250VAC |
| Operating Voltage | Maximum 250VAC |
Part Numbers
| OEM Part Number | 7212603-01 |
| Alternate Part Number | 7212603-03 |
| Manufacturer Reference | Omron Z-15GW22-B (matched type from electric lift truck micro-switch applications) |
Frequently Asked Questions
Q: What is SKU 7212603-01 and what does it control on electric lift trucks?
A: SKU 7212603-01 is a micro-switch used for position sensing and control functions on electric lift trucks. It provides signal feedback to safety and control systems during mast operation and other lift truck functions. The switch uses snap action technology with copper alloy contacts for reliable electrical switching.
Q: What are the electrical specifications for part 7212603-01?
A: This micro-switch is rated for 5A at 125VAC and 3A at 250VAC. Maximum operating voltage is 250VAC. The contact rating and voltage specifications ensure proper operation with standard lift truck signal and safety system wiring.
Q: What is the physical construction of micro-switch 7212603-01?
A: The switch features snap action mechanism, copper alloy contacts, and an impact-resistant thermoplastic housing. It is designed for panel mounting on lift truck control assemblies. This construction provides durability in the vibration and impact environment of material handling equipment.
Q: Is there an alternate part number for 7212603-01?
A: Alternate part number 7212603-03 is functionally equivalent to 7212603-01. Both parts use the same electrical specifications and mounting configuration. Verify your equipment documentation to confirm which version your lift truck requires.
