Product Description
MICRO SWITCH
Frequently Asked Questions

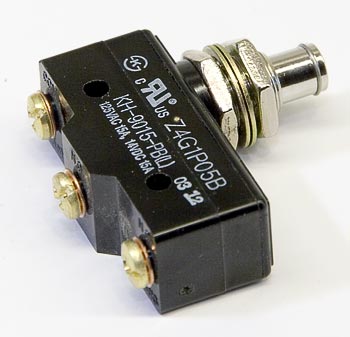

Q: What is the CR 77656 micro switch and what does it control?
A: The CR 77656 is an electrical limit switch used in electric lift truck control circuits. It detects mechanical position changes and triggers corresponding electrical signals to control mast height, load limits, tilt functions, and safety interlocks. Commonly found in Crown, Toyota, Raymond, and Yale lift systems.
Q: What are the electrical specifications for the CR 77656 micro switch?
A: The CR 77656 is rated for 24 VDC control voltage common in lift truck systems. Verify the coil voltage, contact rating (amperage), and terminal configuration match your control circuit requirements. Standard models support 5 to 10 ampere contacts at 24 VDC. Do not substitute with higher voltage switches.
Q: How long does the CR 77656 micro switch typically remain operational?
A: Under normal operating cycles, the CR 77656 has a mechanical life of 1 to 3 million switch cycles. Actual service life depends on contact arcing under load, vibration exposure, and environmental contamination. High-cycle operations or wet environments reduce lifespan to 1 to 2 years.
Q: What symptoms indicate that the CR 77656 micro switch is failing?
A: Common failure signs include intermittent or no response to position changes, inability to trigger mast functions, stuck or sluggish control responses, or dashboard warning indicators activating unexpectedly. If the switch chatters or does not engage cleanly, electrical contacts are likely oxidized and replacement is necessary.
Q: Can the CR 77656 micro switch be used as a direct replacement across different lift truck brands?
A: The CR 77656 is compatible with Crown, Toyota, Raymond, Yale, and similar electric lift truck models. Always verify your equipment model, voltage, and switch terminal configuration before ordering. Contact us with your equipment details to confirm correct part compatibility.
