Product Description

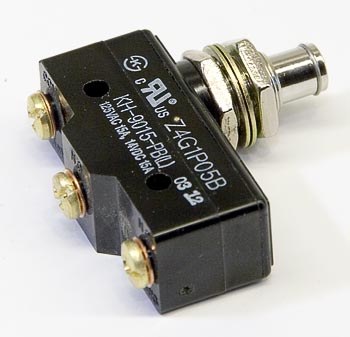

Hyster HY 2307677 micro switch for electric lift trucks features SPDT contacts, plunger actuator, 10A at 250VAC rating, polycarbonate housing, stainless steel actuator, and precise panel mounting dimensions. No cross-reference part numbers are available for this item.
Specifications
Electrical Specifications
| Rated Voltage | 250VAC maximum / 30VDC maximum |
| Contact Rating | 10A resistive at 250VAC |
Material & Construction
| Housing Material | Polycarbonate, flame retardant to UL94 V-2 |
| Actuator Material | Stainless steel 304 |
Mechanical Specifications
| Operating Force | 150 grams maximum actuator force |
Part Numbers
| Manufacturer Part Number | HY 2307677 |
| OEM Part Number | 2307677 |
Performance Specifications
| Mechanical Life | 1 million cycles (minimum) |
| Electrical Life | 100,000 cycles at rated load |
Frequently Asked Questions
Q: What are the electrical specifications of the HY 2307677 micro switch?
A: The HY 2307677 features SPDT contacts, a contact rating of 10A resistive at 250VAC, and is rated for maximum 250VAC or 30VDC. The actuator requires a maximum of 150 grams force to operate.
Q: What material is the HY 2307677 micro switch housing?
A: The HY 2307677 features a polycarbonate housing rated flame retardant to UL94 V-2 standards, with a stainless steel actuator. This combination provides durability and electrical safety in industrial lift truck environments.
Q: How is the HY 2307677 mounted on Hyster electric lift trucks?
A: The HY 2307677 is configured for precise panel mounting with dimensions specified in the technical documentation. Verify mounting dimensions match your resistor or control assembly before ordering.
Q: What does the SPDT contact configuration mean for the HY 2307677?
A: SPDT means Single Pole Double Throw. The switch controls one circuit while allowing the electrical path to switch between two positions—typically used for lift and lower control logic in the resistor assembly.
Q: Are there cross-reference part numbers for the HY 2307677 micro switch?
A: No cross-reference part numbers are available for the HY 2307677. Use the exact part number HY 2307677 or the manufacturer number 2307677 when ordering to ensure you receive the correct switch.
