Product Description

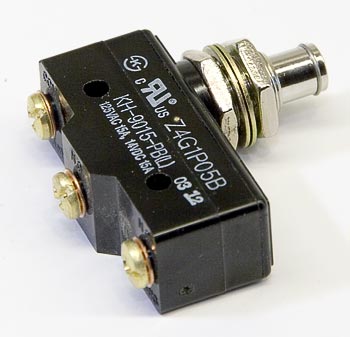

MICRO SWITCH
Frequently Asked Questions
Q: What is the RA 1-150-026 micro switch component?
A: The RA 1-150-026 is a micro switch component used in Raymond electric lift trucks and pallet jacks. Micro switches provide low-current electrical signaling for position sensing, limit detection, and control circuit activation in lift and steering systems.
Q: What is the function of the RA 1-150-026 in lift equipment?
A: The RA 1-150-026 micro switch detects mechanical position or motion and sends electrical signals to the control board. Common applications include lift height limit detection, mast position sensing, tilt detection, and steering angle feedback. The switch closes or opens a circuit when triggered by mechanical contact or pressure.
Q: What equipment models use the RA 1-150-026?
A: The RA 1-150-026 micro switch is compatible with specific Raymond electric pallet jacks and lift truck models. Verify your equipment model number, serial range, and mast or steering assembly design against Raymond parts documentation to confirm this switch is the correct component.
Q: Where is the RA 1-150-026 installed?
A: The exact installation location depends on its intended function. Micro switches are typically mounted on mast assemblies for height limit detection, on steering linkages for angle sensing, or within hydraulic cylinders for position feedback. Consult your equipment service manual for the specific mounting location and adjustment procedure.
Q: What are typical failure symptoms of a faulty RA 1-150-026?
A: If the RA 1-150-026 micro switch fails, you may observe error codes on the control panel, inability to raise or lower the mast, steering control loss, or failure of the truck to respond to operator input. The control board relies on this switch signal to execute lift and steering functions.
