Product Description

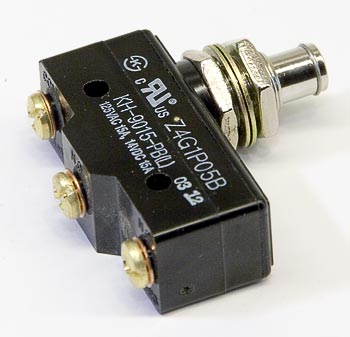

Raymond microswitch assembly part number RA1-150-324 (OEM 1-150-324) designed for brake system applications in Raymond forklift equipment. Limit switch mechanism providing mechanical actuation for electrical control circuits in material handling vehicles. Compatible with Raymond forklift models requiring 1-150 series switch components.
Specifications
Part Numbers
| OEM Part Number | 1-150-324 |
| Manufacturer Part Number | RA1-150-324 |
| Part Category Code | 1-150 series switch components |
Frequently Asked Questions
Q: What does the RA 1-150-324 microswitch assembly do?
A: The RA 1-150-324 is a microswitch assembly designed for brake system applications in Raymond forklift equipment. It functions as a limit switch that provides mechanical actuation to electrical control circuits, enabling brake engagement and safety interlocks in material handling vehicles.
Q: What is the OEM part number for the RA 1-150-324?
A: The OEM part number is 1-150-324. The full part designation is RA1-150-324 when ordered as a replacement component. Both designations refer to the same Raymond microswitch assembly.
Q: Which Raymond forklift models use the RA 1-150-324?
A: The RA 1-150-324 is compatible with Raymond forklift models requiring 1-150 series switch components, particularly those with brake system control circuits. Confirm your equipment uses this series before ordering.
Q: How does a brake system microswitch work in forklifts?
A: The microswitch provides mechanical actuation through a lever or plunger that reacts to brake pedal position or brake cylinder pressure. When activated, it sends an electrical signal to control circuits, typically for brake lamp indication, interlock functions, or brake engagement verification.
Q: What is the lifespan and maintenance of the RA 1-150-324?
A: Microswitch assemblies typically last 3 to 5 years depending on activation frequency and mounting position. Lifespan reduces if exposed to excessive moisture, vibration, or chemical contamination. Replace if the switch does not activate consistently or if brake system diagnostics show control circuit faults.
Q: Are there cross-reference parts for the RA 1-150-324?
A: No alternative cross-reference part numbers are currently available for the RA 1-150-324. Use the exact part number or OEM number 1-150-324 when ordering replacements to ensure correct brake system function.
