Product Description

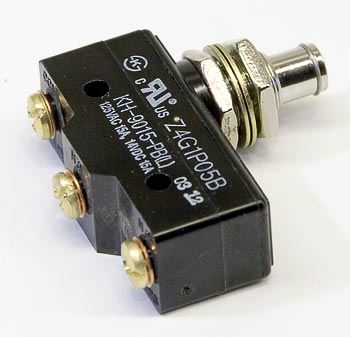

Raymond RA 590-023 Micro Switch for electric lift trucks, featuring SPDT contacts, 10A 125VAC rating, snap action mechanism, and robust high-impact polymer housing for demanding material handling environments.
Specifications
Dimensional Specifications
| Actuator Travel | 0.060 inch ±0.010 inch |
Electrical
| Voltage Rating | 125VAC nominal |
| Current Rating | 10A resistive @ 125VAC |
Material & Construction
| Switch Body Material | Glass-filled thermoplastic |
| Actuator Material | Stainless steel |
| Enclosure Material | High-impact polymer |
Part Numbers
| Manufacturer Part Number | RA 590-023 |
| OEM Part Number | RA590-023 |
Performance Specifications
| Mechanical Life | Minimum 1,000,000 cycles |
| Electrical Life | Minimum 100,000 cycles at rated load |
Frequently Asked Questions
Q: What voltage and current ratings does the RA 590-023 micro switch have?
A: The RA 590-023 is rated at 10A resistive current at 125VAC nominal voltage. This micro switch is suitable for control circuits in Raymond electric lift trucks where those voltage and current specifications apply.
Q: What contact configuration does the RA 590-023 use?
A: The RA 590-023 features SPDT (Single Pole Double Throw) contacts with a snap action mechanism. This configuration provides reliable switching for material handling equipment control circuits.
Q: What materials are used in the RA 590-023?
A: The switch body is constructed from glass-filled thermoplastic for durability. The actuator is stainless steel, and the enclosure is high-impact polymer. These materials resist impact and environmental stress in demanding warehouse and material handling operations.
Q: What is the actuator travel distance on the RA 590-023?
A: The actuator travel is 0.060 inch with a tolerance of plus or minus 0.010 inch. This specification ensures consistent operation when controlling equipment functions.
Q: Which Raymond electric lift truck models use the RA 590-023?
A: The RA 590-023 is compatible with Raymond electric lift trucks requiring a 125VAC, 10A SPDT micro switch. Confirm your equipment voltage and switch configuration specifications match before ordering.
