Product Description

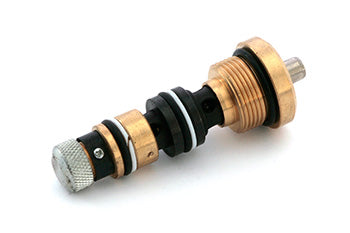

Mighty Lift ML A321 hydraulic valve cartridge is an OEM replacement component specifically designed for ML55, ML55-II, and ML55L manual pallet jack series. Machined from high-strength steel with nitrided sealing surfaces, this cartridge valve installs into the hydraulic pump assembly, providing precise lift and hold control for manual pallet truck applications. Rated for up to 3000 PSI system pressure and equipped with NBR elastomer seals.
Compatibility: Fits pallet jacks made by Mighty Lift, model ML55-II & ML55L. Alternate model: ML55II & ML55L; ML55 II & ML55L. SKU: ML A321
Specifications
Hydraulic
| Pressure Rating | Maximum working pressure 3000 PSI |
Material & Construction
| Body Material | Machined steel, nitrided sealing surfaces |
Part Numbers
| OEM Part Number | ML A321 |
| Manufacturer Part Number | MLA321 |
| Compatible Models | Mighty Lift ML55, ML55-II, ML55L series manual pallet jacks |
Frequently Asked Questions
Q: What is the function of the ML A321 hydraulic valve cartridge?
A: The ML A321 is an OEM hydraulic valve cartridge that installs into the pump assembly to provide precise lift and hold control in manual pallet jacks. It manages hydraulic pressure and flow, ensuring smooth load lifting and load-holding integrity.
Q: Which Mighty Lift pallet jack models use the ML A321 cartridge valve?
A: The ML A321 is designed for Mighty Lift ML55, ML55-II, and ML55L series manual pallet jacks. Verify your model designation matches one of these three before ordering.
Q: What is the maximum pressure rating of the ML A321 hydraulic valve cartridge?
A: The ML A321 is rated for a maximum working pressure of 3000 PSI. Do not exceed this pressure rating, as it can cause seal failure and loss of hydraulic control.
Q: What sealing materials does the ML A321 use?
A: The ML A321 features nitrided sealing surfaces on the machined steel body and is equipped with NBR elastomer seals. These materials provide reliable static and dynamic sealing performance across normal operating temperatures.
Q: What are the symptoms of a failing ML A321 valve cartridge?
A: Indicators of valve cartridge failure include slow or uneven lifting, inability to hold load under pressure, hydraulic fluid leakage at the pump, or a spongy lever feel. Degraded performance may occur due to seal wear or internal spool damage.
Q: What materials make up the ML A321 body?
A: The ML A321 body is machined from high-strength steel with nitrided sealing surfaces. Nitriding hardens the surface to resist wear and degradation from repeated pressure cycling.
