Product Description

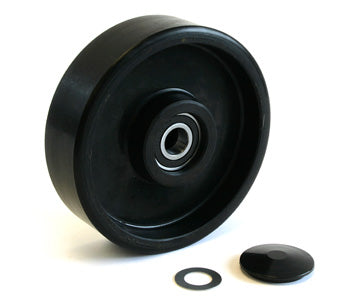

Mobile MO 18E310P-1 steer wheel assembly engineered for Mobile pallet trucks, featuring a ultra-poly tread, aluminum hub, 6204 sealed bearing, and direct fit for axle. Cross-compatible with MO 18E310P-D, MO 18E310, and equivalent numbers. Specification: max radial load, polyurethane tread, ASTM B26 aluminum, 72 Shore D, thrust washer, ABS hub cap, and continuous duty cycle rating.
Specifications
Wheel Specifications
| Wheel Core Material | Aluminum alloy, machined |
| Tread Material | Polyurethane / resin blend |
| Tread Hardness | 72 Shore D, 92 Shore A nominal |
| Bearing Type | 6204 sealed ball bearing |
| Axle Fit | Direct fit axle |
| Hub Material | Aluminum sand cast, ASTM B26 |
| Continuous Duty Cycle | 120 cycles per hour at maximum load |
| Included Components | Thrust washer, ABS hub cap |
Part Numbers
| Manufacturer Part Number | MO 18E310P-1 |
| Cross-Reference Part Numbers | MO 18E310P, MO 18E310P-D, 18E310P |
| Supersedes Part Number | Replaces 18E310P |
| Compatible Models | Mobile ECO I-55, ECOI55, I-55 |
Frequently Asked Questions
Q: What is the wheel diameter and tread specification for the MO 18E310P-1?
A: The MO 18E310P-1 features a wheel diameter with ultra-poly tread. The tread is a polyurethane and resin blend material with 72 Shore D hardness, providing excellent wear resistance and traction in warehouse and dock environments.
Q: What hub material and bearing type are in the MO 18E310P-1?
A: The MO 18E310P-1 hub is aluminum sand-cast to ASTM B26 specification. It uses a 6204 sealed ball bearing, which provides reliable operation under continuous duty cycle conditions at 120 cycles per hour.
Q: What is the maximum load rating for the MO 18E310P-1?
A: The MO 18E310P-1 has a maximum radial load capacity. This rating applies to the steer wheel position on Mobile pallet trucks under continuous duty cycle operation.
Q: What axle size does the MO 18E310P-1 accommodate?
A: The MO 18E310P-1 is a direct fit for an axle. The assembly includes a thrust washer and ABS hub cap as standard components.
Q: What are the cross-reference part numbers for the MO 18E310P-1?
A: The MO 18E310P-1 is cross-compatible with MO 18E310P, MO 18E310P-D, and 18E310P. It shares the same dimensional footprint and bearing specification with these designated variants and replaces the earlier 18E310P model.
Q: What equipment models use the MO 18E310P-1 steer wheel?
A: The MO 18E310P-1 is designed for use with Mobile ECO I-55, ECOI55, and I-55 pallet truck models. The wheel's diameter and sealed bearing design provide optimal performance for these Mobile pallet handling applications.
Q: How should this wheel be stored when not in use?
A: Store the MO 18E310P-1 in a dry, climate-controlled environment. Keep the sealed bearing protected from moisture and contamination. Periodically inspect the bearing and axle connection for any signs of corrosion or wear when in long-term storage.
