Crown 24VDC Motor for Electric Pallet Jacks
CR 94313
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

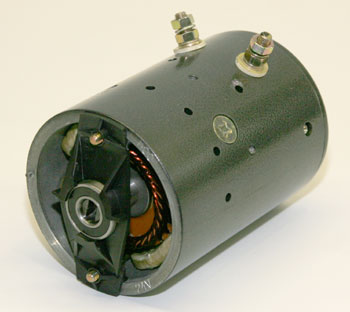

Crown CR 94313 is a 24VDC series wound electric motor designed for pump drive in electric pallet jack trucks, featuring NEMA 56C mounting, 0.625 inch shaft diameter, 9.0 inch overall length, and carbon graphite brush set.
Specifications
Material & Construction
| End Bell Construction | Cast iron end bells |
Part Numbers & Compatibility
| Make | Crown |
| Model | GPW |
| Application Voltage Range | Nominal 24VDC |
| Part Number | CR 94313 |
Electrical Specifications
| Motor Voltage | 24VDC continuous duty |
| Control Voltage | 24VDC |
Wheel Dimensions
| Shaft Diameter | 0.625 inch |
| Overall Length | 9.0 inch |
Performance Specifications
| Duty Cycle | S2-15% intermittent at rated output |
Additional Specifications
| Frame Material | Steel frame, enamel coated |
| Service Factor | 1.0 continuous |
| Mounting Type | NEMA 56C |
| Brush Set | Carbon graphite brush set |
Frequently Asked Questions
Q: Which models is the CR 94313 compatible with?
A: The CR 94313 is compatible with Crown electric lift truck models that use 24VDC pump-drive systems. Verify compatibility by checking your truck's serial number and electrical schematic.
Q: What materials are used in the CR 94313 construction?
A: The CR 94313 features a steel frame with enamel coating for corrosion resistance and cast iron end bells for durability. Carbon graphite brushes ensure reliable commutation in industrial environments.
Q: How should I replace the CR 94313?
A: When replacing the CR 94313, ensure the mounting face dimensions match your pump coupling. Cross-reference your truck's electrical schematic to confirm compatibility before installation.
Q: What are the operating specifications for the CR 94313?
A: The CR 94313 is a 24VDC series-wound motor designed for continuous duty operation. It features a 1.0 service factor and S2-15% intermittent duty cycle rating at nominal 24VDC. Control voltage is also 24VDC.
Q: What factors affect the lifespan of the CR 94313?
A: Motor lifespan depends on duty cycle adherence, electrical load, bearing condition, and brush wear. Under rated S2 intermittent service, expect 3000 to 5000 operating hours.
