Hyster 24VDC Motor for Electric Lift Trucks
HY 1334238
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

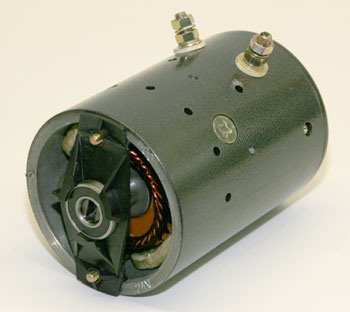

Hyster HY 1334238 24VDC motor for electric lift truck applications. OEM DC motor with precision-wound copper armature, industrial grade brush set, sealed ball bearings, open drip-proof frame, and compatibility with 24V lead-acid battery systems. Engineered for continuous duty cycles on Hyster electric lift trucks.
Specifications
Part Numbers & Compatibility
| Make | Hyster |
| Battery Compatibility | Lead-acid, 24V nominal system voltage |
| Part Number | HY 1334238 |
| Application | Electric lift truck applications |
Electrical Specifications
| Motor Voltage | 24VDC continuous duty |
| Control Voltage | 24VDC |
Performance Specifications
| Duty Cycle | Continuous duty cycles |
Additional Specifications
| Housing Material | Cast iron end brackets, steel main case |
| Motor Type | DC motor |
| Armature Type | Precision-wound copper armature |
| Brush Set Type | Industrial grade brush set |
| Bearing Type | Sealed ball bearings |
| Frame Type | Open drip-proof frame |
Frequently Asked Questions
Q: What makes and models is the HY 1334238 compatible with?
A: The HY 1334238 is designed for Hyster electric lift trucks. Compatibility with other brands depends on motor mounting specifications and voltage matching. Verify dimensional fit and control voltage requirements before cross-application.
Q: What materials are used in the HY 1334238 construction?
A: The HY 1334238 features cast iron end brackets, a steel main case, and precision-wound copper armature. It includes an industrial grade brush set and sealed ball bearings rated for continuous duty cycles in material handling equipment.
Q: How long can the HY 1334238 operate continuously?
A: The HY 1334238 is rated for continuous duty cycles. The sealed ball bearings and industrial grade brush set are designed to handle repetitive load cycling in electric lift truck applications without interruption.
Q: What type of frame does the HY 1334238 use?
A: The HY 1334238 uses an open drip-proof frame design, which provides protection against moisture and debris commonly encountered in warehouse and material handling environments while allowing adequate ventilation for continuous operation.
Q: What type of battery system is the HY 1334238 designed for?
A: The HY 1334238 is engineered for use with 24v lead-acid battery systems. It requires 24vdc control voltage for operation.
Q: How should I replace the HY 1334238?
A: When replacing the HY 1334238, ensure that the new part matches the original specifications. Verify compatibility with your lift truck model and check for proper mounting and electrical connections before installation.
