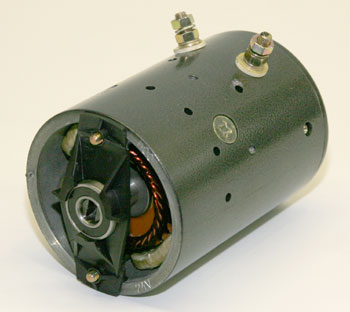

Raymond Motor, 24VDC for Electric Pallet Trucks
RA 939-049
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
OEM Raymond RA 939-049 Motor, 24VDC for electric pallet truck drive or traction application. Designed for direct drop-in replacement on Raymond electric pallet trucks; heavy-duty steel construction, compatible with 24V battery systems, and intended for continuous warehouse operation. No cross-reference part numbers available.
Specifications
Material & Construction
| Frame Construction | Steel housing with integral mounting flange |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 101 |
| Part Number | RA 939-049 |
| Manufacturer Part Number | RA 939-049 |
Electrical Specifications
| Motor Voltage | 24VDC |
| Compatible Battery System | 24V deep cycle industrial battery |
Additional Specifications
| Primary Use | Power drive unit for Raymond electric lift trucks |
| Description | OEM Raymond RA 939-049 Motor, 24VDC for electric pallet truck drive or traction application. Designed for direct drop-in replacement on Raymond electric pallet trucks; heavy-duty steel construction, compatible with 24V battery systems, and intended for continuous warehouse operation. No cross-reference part numbers available. |
Frequently Asked Questions
Q: What models is the RA 939-049 compatible with?
A: The RA 939-049 is compatible with Raymond model 101 electric lift trucks.
Q: What material is the RA 939-049 made from?
A: The RA 939-049 is constructed with heavy-duty steel components for durability and long-term use in industrial environments.
Q: How do I know if the RA 939-049 is the right replacement part for my equipment?
A: Verify that your Raymond electric lift truck model is compatible with the RA 939-049. This part is designed for direct installation in specific applications.
Q: What type of battery system should be used with the RA 939-049?
A: The RA 939-049 requires a 24V deep cycle industrial battery system. Ensure your battery is rated for continuous warehouse duty and properly maintained.
Q: Is there a cross-reference part number for the RA 939-049?
A: No cross-reference part numbers are available for the RA 939-049. This is a replacement part designed specifically for Raymond electric lift trucks.
