Product Description

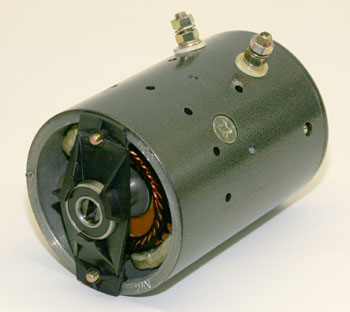

Industrial-grade Yale 24VDC traction motor (SKU YL 519616803) for electric lift truck assemblies, engineered for continuous-duty operation and compatibility with OEM mounting standards. Specifications include keyed 0.875 inch shaft, stud terminal posts, SAE 1045 armature construction, rated for 52A running load, with efficient ball-bearing support.
Specifications
Dimensional
| Mounting Hole Pattern | 4 bolt, 5/16-18 UNC, spaced at 90° intervals |
Electrical
| Motor Voltage | 24VDC nominal |
| Current Draw | Nominal running amperage: 52A |
Material & Construction
| Material Specification | Armature shaft: SAE 1045 steel |
| Frame Material | Steel endbell, powder coated |
Part Numbers
| OEM Part Number | YL 519616803 |
Performance
| Service Factor | 1.15 |
| Efficiency Rating | 85% at nominal voltage |
Frequently Asked Questions
Q: What is the rated amperage and voltage specification for the YL 519616803 motor?
A: The YL 519616803 is a 24VDC nominal motor rated for 52A running load. It is engineered for continuous-duty operation in electric lift truck assemblies. The motor features 1.15 service factor and 85% efficiency at nominal voltage.
Q: Is the YL 519616803 compatible with my electric lift truck model?
A: The YL 519616803 is engineered for electric lift truck assemblies with OEM mounting standards. Verify that your equipment requires a 24VDC motor with a keyed 0.875 inch shaft and stud terminal posts. Cross-reference your equipment manual against OEM part number YL 519616803 to confirm fitment.
Q: What materials are used in the YL 519616803 armature and frame?
A: The armature shaft is constructed from SAE 1045 steel for durability and precision. The frame is steel with powder-coated endbell protection against corrosion and wear in material handling environments.
Q: How long does the YL 519616803 typically remain in service?
A: Lifespan depends on duty cycle, load conditions, and maintenance. The ball-bearing support and SAE 1045 armature construction are engineered for extended continuous-duty service. Monitor brush wear, electrical terminals, and bearing condition during regular maintenance intervals.
Q: What is the shaft configuration on the YL 519616803?
A: The YL 519616803 features a keyed 0.875 inch diameter shaft with stud terminal posts for electrical connection and mechanical mounting. This configuration ensures secure coupling to lift truck drivetrain assemblies.
