Product Description

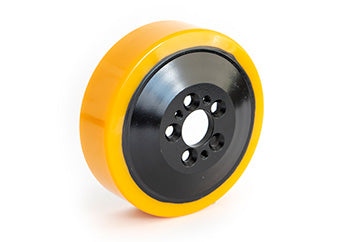

MU 50460100 drive tire assembly for Multiton pallet jacks, featuring a polyurethane tread molded onto a metal hub. No cross-reference OEM part numbers available; use SKU MU 50460100 for direct replacement. Key dimensional specifications: 230 mm diameter, 82 mm width, 45 mm bore, 70 mm PCD, 14 mm stud holes, 5-bolt countersunk mounting pattern. Compatible models for Multiton not listed in available sources.
Specifications
Compatibility
| Compatible Equipment Models | Jungheinrich: ECC 10, ECD 220, ECD 320, ECE 20, ECE 220, ECE 225, ECE 230, EJC 212, EJC 216, EJE 230, EKC 16, ERD 12, ESE 120, EZS 350, and additional E, EK, EJE, EJC, ERC, ESE, EZS series; full model list further available in manufacturer documentation |
Material & Construction
| Hub Material | Machined steel with poly mold-on configuration |
| Wheel Construction | Polyurethane tread chemically bonded to steel hub |
Part Numbers
| OEM Part Number | MU 50460100 |
| Cross-Reference Part Numbers | 50460100, 50460101, 50429920, 50030525, 50460103, 51633199, 52023823, 51331334, 50030509, 26916189 |
| Equivalent Part Numbers | Jungheinrich 50460100, Multiton MU 50460100 |
Frequently Asked Questions
Q: What are the key dimensions of the MU 50460100 drive tire assembly?
A: The MU 50460100 has a 230 mm outer diameter, 82 mm width, 45 mm bore, 70 mm PCD, 14 mm stud holes, and features a 5-bolt countersunk mounting pattern. Verify these dimensions match your equipment before ordering.
Q: What material is the MU 50460100 drive tire made from?
A: The MU 50460100 features a polyurethane tread molded onto a machined steel hub. This construction provides durability and grip for material handling applications across general surfaces.
Q: Is the MU 50460100 compatible with Jungheinrich equipment?
A: The MU 50460100 is listed as equivalent to Jungheinrich part number 50460100. Verify mounting specifications and bolt patterns match your Jungheinrich model before installing.
Q: What cross-reference part numbers match the MU 50460100?
A: Cross-reference and equivalent part numbers for the MU 50460100 include 50460101, 50429920, 50030525, 50460103, 51633199, 52023823, 51331334, 50030509, and 26916189. Use the exact SKU MU 50460100 when ordering direct replacement.
Q: When should the MU 50460100 drive tire be replaced?
A: Replace the drive tire if the polyurethane tread is worn smooth, if you observe flat spots or chunks missing from the tread, if the tire slips on smooth floors, or if the wheel no longer rolls smoothly. A worn drive tire reduces traction and jack maneuverability.
