Product Description

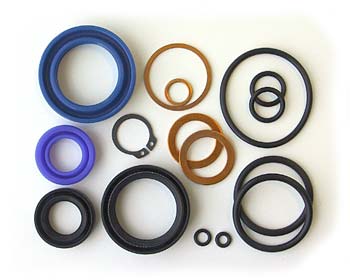

MU74701-SLIM Multiton hydraulic seal kit designed for manual pallet jack lift cylinders. Compatible with Multiton TM, M, and J models. Cross-reference part number MT74701-SLIM. Kit includes NBR and PTFE seals suitable for 2.00 inch bore and 0.875 inch rod, engineered for system pressures up to 3000 PSI. Used for hydraulic maintenance and cylinder rebuild.
Specifications
Material
| Seal Hardness | NBR 70 Shore A durometer |
| Compliance | Complies with SAE J200 for NBR material |
Part Numbers
| OEM Part Number | MU74701-SLIM |
| Manufacturer Part Number | MU74701-SLIM |
| Cross-Reference Part Numbers | Equivalent to MT74701-SLIM |
Performance
| Leakage Rate | Below 5 cc/min at rated pressure |
Frequently Asked Questions
Q: What components are included in the MU74701-SLIM seal kit?
A: The MU74701-SLIM is a hydraulic seal kit that includes NBR and PTFE seals. It is designed for hydraulic lift cylinders and contains all seals needed for a complete cylinder rebuild on compatible equipment.
Q: Which Multiton pallet jack models does the MU74701-SLIM fit?
A: The MU74701-SLIM is compatible with Multiton manual pallet jack models TM, M, and J. It fits lift cylinders with 2.00 inch bore and 0.875 inch rod dimensions.
Q: What pressure range is the MU74701-SLIM rated for?
A: The MU74701-SLIM seals are engineered for system pressures up to 3000 PSI. Do not exceed this pressure rating as it compromises seal integrity.
Q: What material specifications and standards does this seal kit meet?
A: The MU74701-SLIM NBR seals have a hardness of 70 Shore A durometer and comply with SAE J200 material standards. The PTFE component provides low-friction performance in the rod wipers and backup ring positions.
Q: What is the cross-reference part number for the MU74701-SLIM?
A: The MU74701-SLIM is equivalent to MT74701-SLIM. Both SKUs refer to the same seal kit for Multiton TM, M, and J model cylinders.
Q: What leakage specifications should I expect from the MU74701-SLIM?
A: The MU74701-SLIM seals achieve a leakage rate below 5 cc per minute at rated pressure. This low-leakage design maintains hydraulic system efficiency and prevents pressure loss during cylinder operation.
