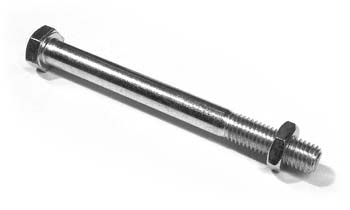

Axle Bolt and Lock Nut Assembly for Multiton TM, M, J, S
MU 190076
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Premium axle bolt and lock nut assembly for Multiton manual pallet jacks. Manufactured from high-strength Grade 8 steel, this fastener is engineered for secure axle mounting and load roller bracket applications. The matched bolt and lock nut prevent loosening during heavy-duty warehouse and dock operations. Features a 9/16-18 UNF thread specification to withstand repeated loading cycles and vibration. Essential replacement component for maintaining pallet jack performance and safety.
Specifications
Material & Construction
| Hardness | Minimum Rockwell C33 |
Part Numbers & Compatibility
| Make | Multiton |
| Model | TM, M, J, S |
| Direct Replacement Part Number | MU 190076 |
| Compatibility | Multiton manual pallet jack frames: TM, M, J, and S |
| Application | Axle mounting and load roller bracket applications |
Additional Specifications
| Material Specification | High-carbon steel |
| Steel Grade | Grade 8 |
| Thread Size | 9/16 -18 UNF |
| Usage | Securing axles in heavy-duty pallet jack service |
Frequently Asked Questions
Q: What makes and models is the MU 190076 compatible with?
A: The MU 190076 is compatible with Multiton TM, m, j, and s series manual pallet jacks. Verify frame design and axle specifications before ordering.
Q: What material is the MU 190076 made from?
A: The MU 190076 is manufactured from high-carbon steel, grade 8, with a minimum rockwell c hardness rating of c33. This high-strength composition is engineered for heavy-duty axle mounting applications.
Q: How does the MU 190076 prevent loosening during operation?
A: The MU 190076 is supplied as a matched axle bolt and lock nut assembly. The lock nut contains a nylon insert or deformed threading that creates friction, preventing the assembly from vibrating loose during pallet jack operation.
Q: What are the primary applications for the MU 190076?
A: The MU 190076 is engineered for axle mounting and load roller bracket applications, providing secure fastening for the axles that support the load wheels and mast assembly in manual pallet jacks.
Q: Why is grade 8 steel used for the MU 190076?
A: Grade 8 steel offers high tensile strength and hardness, necessary to withstand repeated loading cycles, vibration, and lateral stress from lifted loads. This material ensures the axle fasteners do not yield or fail during heavy-duty service.
