Product Description

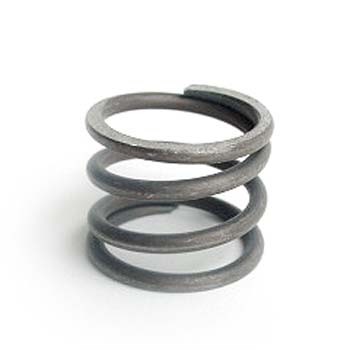

Compression coil spring for Multiton S Series manual pallet jack hydraulic foot control. This high-carbon steel spring is engineered to support the return mechanism on hydraulic foot control assemblies, rated for pallet jacks up to 5000 lbs capacity. Industrial oil coating provides superior corrosion resistance, ensuring reliable performance in warehouse and dock environments. Designed as a direct replacement for Multiton manual pallet jack systems.
Specifications
Material & Construction
| Spring Material | High-carbon steel wire in compliance with ASTM A229 |
| Finish/Coating | Industrial oil coated for corrosion protection |
Physical Dimensions
| External Diameter | 0.63 inches |
| Free Length | 2.48 inches |
| Wire Diameter | 0.063 inches |
Application
| Rated Capacity | Up to 5000 lbs |
| Compatibility | Multiton S Series manual pallet jack hydraulic foot control |
Part Identification
| Manufacturer Part Number | MU 19349 |
| Brand | Multiton |
Frequently Asked Questions
Q: What is the MU 19349 spring designed for?
A: The MU 19349 is a compression coil spring engineered for the S Series manual pallet jack hydraulic foot control return function. It supports the return mechanism on Multiton pallet jacks rated up to 5000 lbs capacity.
Q: What are the exact spring specifications?
A: External diameter: 0.63 inches. Free length: 2.48 inches. Wire diameter: 0.063 inches. Material: High-carbon steel wire per ASTM A229 specification. Finish: Industrial oil coated for corrosion resistance.
Q: Why is this spring oil coated?
A: The industrial oil coating protects the high-carbon steel wire from corrosion and rust, which is critical in hydraulic foot control assemblies exposed to moisture and hydraulic fluid. This coating extends service life in wet or outdoor environments.
Q: What is the lifespan of the MU 19349 spring?
A: Under normal operating conditions on a manual pallet jack, this compression spring typically lasts several years. Replace it when foot control becomes sluggish, does not fully return, or shows signs of permanent deformation. Fatigue failure is rare if the equipment is used within rated capacity.
Q: Is there a cross-reference part number for the MU 19349?
A: The MU 19349 is a Multiton OEM part number. Cross-reference or compatibility with other brands should be verified by comparing the exact specifications listed above. Always confirm dimensions and load rating before substituting parts.
