Sleeve for Multiton TM and J
MU 40196
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

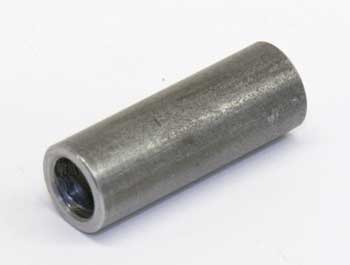

Multiton MU 40196 sleeve for manual pallet jack models TM, M, J, and S. OEM component engineered as a precision-machined steel bushing, typically press-fit into pivot axle or load roller assemblies for frame support and shaft alignment. Manufactured to Multiton’s original specifications for replacement or overhaul.
Compatibility: Fits pallet jacks made by Multiton, model TM and J. SKU: MU 40196
Specifications
Material & Construction
| Surface Finish | Machined finish, may have light oil film for corrosion protection |
Part Numbers
| OEM Part Number | MU 40196 |
| Manufacturer Part Number | MU40196 |
| Cross-Reference Part Numbers | MT40196 |
| Replaces/Supersedes | Supersedes older Multiton sleeve part numbers (specifically MT40196) |
Frequently Asked Questions
Q: What is the MU 40196 sleeve and what materials is it made from?
A: The MU 40196 is a precision-machined steel bushing (sleeve) for Multiton manual pallet jacks. It is an OEM component engineered to Multiton original specifications with a machined finish and light oil film for corrosion protection.
Q: What is the function of the MU 40196 sleeve in a pallet jack?
A: The MU 40196 sleeve is typically press-fit into pivot axles or load roller assemblies to provide frame support and shaft alignment. It maintains proper bearing surfaces and prevents excessive wear on mating components.
Q: Which Multiton models does the MU 40196 sleeve fit?
A: The MU 40196 is compatible with Multiton TM and J series manual pallet jacks. Although documentation references TM, M, J, and S series, verify your specific model before ordering.
Q: What are the cross-reference and superseded part numbers for the MU 40196?
A: The MU 40196 supersedes the older Multiton part number MT40196. The cross-reference part number is also MT40196. When ordering, use MU 40196 as the current designation.
Q: How should the MU 40196 sleeve be stored and maintained?
A: The MU 40196 arrives with a light oil film for corrosion protection during storage. Store in a dry environment. The machined finish is precision-engineered, so handle carefully to avoid contamination or damage before installation in the pivot or roller assembly.
Q: Is the MU 40196 an OEM part or aftermarket component?
A: The MU 40196 is an OEM (original equipment manufacturer) part number engineered and manufactured to Multiton original specifications for replacement or overhaul of TM and J series equipment.
