Product Description

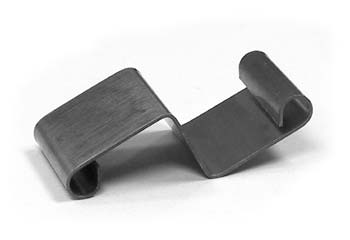

The Multiton MU 38597 is a direct replacement handle spring designed for Multiton manual pallet jack control assemblies in the TM, M, and J series. Manufactured from high-tensile oil-tempered steel with black oxide finish, this spring provides reliable tension return and lever engagement control for lift and lower functions. Built for demanding material handling environments where extended cycle life and consistent performance are essential. Compatible with Multiton manual pallet jacks rated up to 5,500 lbs capacity.
Specifications
Mechanical Specifications
| Material | High-tensile oil-tempered steel, ASTM A229 |
| Finish | Black oxide |
| Spring Working Deflection | Rated for up to 1.10 inch extension under operating load |
| Associated Assembly Parts | Handle Spring interfaces with Cam (MU 38596), Roll Pin (MU 0575901), Handle Assembly (MU 38587-HD) |
Part Numbers & Compatibility
| Manufacturer Part Number | MU 38597 |
| Direct Replacement Part Number | MU 38597 |
| Equipment Compatibility | Multiton TM, M, and J series manual pallet jacks, rated up to 5,500 lbs capacity |
Frequently Asked Questions
Q: What is the MU 38597 and which Multiton equipment does it fit?
A: The MU 38597 is an OEM replacement handle spring for Multiton manual pallet jacks in the TM, M, and J series. It functions within the handle control assembly and is rated for equipment up to 5,500 lbs capacity.
Q: What material and specifications does the MU 38597 handle spring meet?
A: The MU 38597 is manufactured from high tensile oil-tempered steel to ASTM A229 standards with black oxide finish. It has a spring working deflection rated for up to 1.10 inch extension under operating load.
Q: How long does the MU 38597 spring typically last in service?
A: The MU 38597 is designed for extended cycle life in demanding material handling environments. Lifespan depends on load cycles and maintenance conditions. Replacement is needed if the spring loses tension or cannot extend to full 1.10 inch deflection.
Q: What parts work together with the MU 38597 handle spring?
A: The MU 38597 handle spring interfaces with the MU 38596 cam, MU 0575901 roll pin, and the MU 38587-HD handle assembly as part of the complete control linkage system.
Q: How does the MU 38597 spring control manual pallet jack operation?
A: The MU 38597 spring works with the cam (MU 38596) in the handle assembly to return the control lever to neutral position and control the engagement of lift and lower functions during operation.
Q: Is the MU 38597 available from other manufacturers?
A: No additional cross-reference part numbers are available. The MU 38597 is the specific OEM part number for Multiton TM, M, and J series equipment.
