Product Description

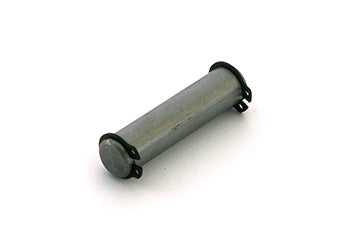

Multiton MU 38613 shaft is an OEM component for TM, M, and J series manual pallet jack hydraulic units. This shaft is supplied with two roll pins (MU 05759015) for secure installation and serves as a critical connection in the hydraulic linkage assembly.
Compatibility: Fits pallet jacks made by Multiton, model TM, M & J. SKU: MU 38613
Specifications
Dimensional Specifications
| Reference Drawing Index | Referenced as 'Shaft 38613' in Multiton assembly diagrams |
Part Numbers
| Manufacturer Part Number | MU 38613 |
| Cross-Reference Part Numbers | Replaces 38613; associated with roll pin MU 05759015 |
| OEM Part Number | 38613 |
Frequently Asked Questions
Q: What equipment does the MU 38613 shaft fit?
A: The MU 38613 shaft is an OEM component designed for Multiton manual pallet jacks in the TM, M, and J series. It serves as a critical connection point in the hydraulic linkage assembly of these units.
Q: What is included with the MU 38613 shaft?
A: The MU 38613 shaft is supplied with two roll pins (part number MU 05759015) for secure installation and proper assembly alignment.
Q: What cross-reference part numbers should I know for the MU 38613?
A: The MU 38613 replaces OEM part number 38613. This shaft is referenced as Shaft 38613 in Multiton assembly diagrams and is associated with roll pin MU 05759015.
Q: Is the MU 38613 a critical hydraulic component?
A: Yes. The MU 38613 shaft is a critical connection in the hydraulic linkage assembly. Wear or damage to this shaft can affect the smooth operation and responsiveness of the hydraulic system in TM, M, and J series units.
