Product Description

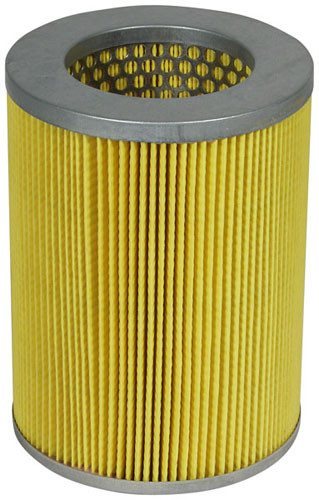

Air filter
Frequently Asked Questions
Q: What equipment does the N-16546-L3000-B air filter fit?
A: The N-16546-L3000-B is compatible with Linde and Jungheinrich forklifts as well as similar-architecture equipment from Crown, Toyota, Raymond, Yale, and Hyster. The -B designation indicates compatibility with backup or secondary intake systems. Verify your equipment serial number and model against the specification sheet before ordering.
Q: What are the specifications for the N-16546-L3000-B air filter?
A: The N-16546-L3000-B features pleated synthetic media designed to capture particles down to 3 microns. Nominal dimensions are 110mm diameter by 170mm height. Airflow rating is approximately 55 cubic feet per minute. The -B variant includes a secondary bypass valve rated at 4 inches of water column.
Q: What does the -B designation mean on the N-16546-L3000-B?
A: The -B suffix indicates this filter has a built-in backup or emergency bypass valve. If the main filter element becomes clogged, the bypass valve opens to allow unfiltered air to the engine, preventing stalling. This protects against sudden filter failure during operation but indicates the primary element needs immediate replacement.
Q: How long does the N-16546-L3000-B typically last before replacement?
A: Service life depends on operating environment. In clean indoor warehouses, expect 6 to 12 months of operation. In dusty outdoor environments, replacement may be needed every 3 to 6 months. Check the filter monthly for visible dirt accumulation. If the bypass valve activates, replace the filter immediately.
Q: What are the cross-reference part numbers for the N-16546-L3000-B?
A: The N-16546-L3000-B is equivalent to Linde part 7916042801, Jungheinrich part 50004947, and similar OEM specifications with bypass valve. Always confirm OEM part numbers and bypass pressure ratings match your equipment before ordering.
Q: Can the N-16546-L3000-B be cleaned and reused?
A: The N-16546-L3000-B synthetic media can be gently cleaned with compressed air (below 80 PSI) from clean side to dirty side. The bypass valve is non-serviceable. Once pleats show permanent deformation or the bypass valve has activated, replace the entire filter. Do not attempt to manually reset the bypass valve.
