Product Description

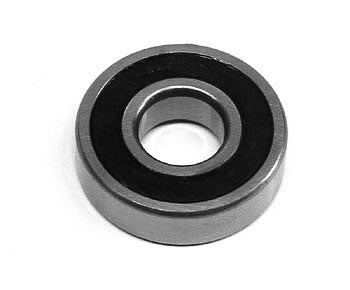

Single-Shield Bearing Assembly for Manual Pallet Jacks
The ND7605 is a precision-engineered bearing assembly designed for load wheels and pivot points in manual pallet jacks across multiple equipment manufacturers. The single-shield design provides contamination protection on one side while maintaining open access on the opposite side for easy lubrication and maintenance. Built for warehouse environments, this bearing balances durability with serviceability, delivering consistent performance under typical warehouse operations.
Ideal for indoor loading dock and storage facility use, the ND7605 supports reliable pallet movement and positioning in demanding daily operations.
Frequently Asked Questions
Q: What does the single shield do on the ND7605 bearing assembly?
A: The single shield is a protective plate on one side of the bearing that blocks dirt, dust, and water splash while the opposite side remains open for lubrication access. This design balances contamination protection with maintenance accessibility in manual pallet jacks.
Q: Which pallet jack models require the ND7605?
A: The ND7605 is used in manual pallet jacks from Crown, Toyota, Raymond, Yale, Hyster, Linde, and BT. It fits load wheel assemblies and lift pivot points. Confirm your equipment serial number falls within the ND7605 compatibility range.
Q: How long does the ND7605 last under typical warehouse conditions?
A: In normal dry warehouse use with regular lubrication, the ND7605 lasts 18 to 30 months. In high-cycle operations or moist environments, lifespan reduces to 12 to 18 months. Replace when rotation becomes rough or noise increases during operation.
Q: Can the ND7605 be used in cold storage?
A: The ND7605 standard bearing is not optimized for temperatures below 20 degrees Fahrenheit. Cold storage use will cause the grease to stiffen, reducing rotation efficiency and increasing load on the bearing. Specify cold-storage-rated bearings for freezer applications.
Q: What other bearing assemblies can substitute for the ND7605?
A: Alternative single-shield bearings in our line are ND7305, ND7506, and ND7509. Each has different dimensional specifications. Compare bore diameter, outer diameter, and width before substituting. Mismatched dimensions will cause assembly fit problems.
Q: Should the shield side of the ND7605 face inward or outward?
A: Orient the shield side to face the exterior of the wheel or pivot assembly. This position deflects dirt and water away from the bearing cavity. The open side should face toward the lubrication point for maintenance access.
