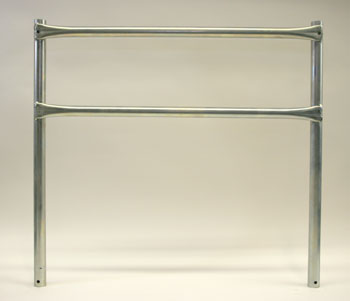

Product Description
34-1/2 ht 25-1/2 vert
Frequently Asked Questions
Q: What are the dimensions of the NF H-FRAME 375-24-W09?
A: The NF H-FRAME 375-24-W09 has a height of 34.5 inches and vertical spacing of 25.5 inches. Ensure these dimensions align with your conveyor deck elevation and floor plan.
Q: How does the W09 model differ from the W06?
A: The W09 is taller by 1.5 inches in height and 1.5 inches in vertical spacing compared to the W06. Choose the model that matches your required conveyor height and roller positioning.
Q: Is the NF H-FRAME 375-24-W09 compatible with standard gravity conveyor rollers?
A: Yes, this frame accommodates standard roller and skate wheel assemblies used in 24-inch roller pitch gravity conveyor systems. Verify roller diameter and bearing compatibility with your existing equipment.
Q: What is the weight capacity of this frame?
A: Frame capacity depends on your overall conveyor assembly design, roller type, and load distribution. Consult your equipment specification sheet or contact us with your load requirements.
Q: Can the NF H-FRAME 375-24-W09 be used as a replacement frame?
A: Yes, this frame can replace older or damaged H-frames in gravity conveyor systems. Verify that height and spacing dimensions match your current assembly and that connection points are compatible.
