Product Description

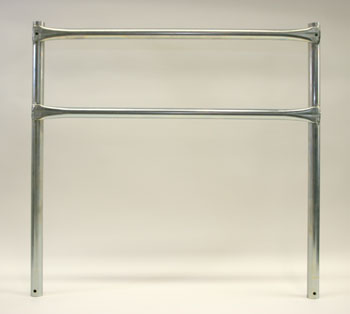

35-1/4 ht 26-1/4 vert
Frequently Asked Questions
Q: What are the dimensions of the NF H-FRAME 375-24-W16?
A: The NF H-FRAME 375-24-W16 has a height of 35.25 inches and vertical spacing of 26.25 inches. This model fills the size range between the W12 and W15.
Q: Which conveyor system designs specify the W16 model?
A: The W16 is used in systems requiring elevated deck height for gravity roller conveyors in pick-and-pack operations, sortation systems, and multi-level material flow applications.
Q: Is the NF H-FRAME 375-24-W16 interchangeable with other frame sizes?
A: All frames in the 375-24 series share the same 24-inch roller pitch and attachment points for rollers and wheels. However, height differences affect conveyor deck elevation, so frames must match intended system design.
Q: What load rating does the W16 support?
A: Frame load capacity is determined by roller selection, bearing type, and overall conveyor assembly design. Refer to your system specification sheet or contact us with your payload and duty cycle requirements.
Q: How should I inspect the W16 frame for damage?
A: Check for stress cracks at welds and corners, bent support legs, corrosion, and loose bolts. Visual wear or metal loss indicates need for repair or replacement to maintain system safety and roller alignment.
