Product Description
36 ht 28-1/4 vert 1 hole
Frequently Asked Questions

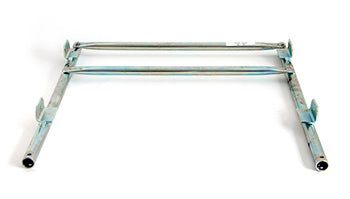

Q: What are the dimensions of the NF H-FRAME 375IMPACT-24-W03?
A: The NF H-FRAME 375IMPACT-24-W03 has a height of 36 inches and vertical depth of 28 and 1/4 inches. It features a single mounting hole configuration designed for impact-duty gravity conveyor applications.
Q: What does the IMPACT designation mean for this H-frame?
A: The IMPACT designation indicates this frame is engineered for high-shock and drop-load applications typical of package handling and distribution conveyors. The frame geometry provides reinforced load paths to handle repeated impact stress.
Q: How does the NF H-FRAME 375IMPACT-24-W03 compare to non-impact gravity frames?
A: Impact-rated frames feature heavier gauge steel and reinforced corners to absorb shock loads from dropped packages and product impacts. Use standard frames only for low-impact applications. Specify impact frames for parcel sortation, package chutes, and skid chutes.
Q: What maintenance is required for the NF H-FRAME 375IMPACT-24-W03?
A: Inspect the frame monthly for cracks at welds and reinforced corners due to repetitive shock loading. Check bolt torque quarterly. Replace the frame immediately if cracks appear to prevent frame failure under load.
Q: What is the rated load capacity for the NF H-FRAME 375IMPACT-24-W03?
A: Load capacity depends on how the frame is mounted, supported, and what conveyor components are installed. Refer to the product datasheet and installation documentation for specific capacity ratings. Consult with us if your application requires verification of load limits.
